Product Attribute | Attribute Value |
---|---|
Body Style | Rectangular |
Connection | 4 Pin Dual Key Micro Connector |
Connection Type | Micro 1/2 in 4-Pin |
Contact Configuration | Isolated Solid State Relay |
Contact Rating | 300 mA at 240 Vac/Vdc |
Current, Switching | 300 mA |
Height | 4.01 Inch |
Input Voltage | 12–240 Vdc 24–240 Vac |
IP Rating | IP67 |
Length | 1.91 Inch |
Light Source | Visible Red |
Measurement Range | 4.9 m |
Operation | Dark-ON/Light-ON |
Output | Solid State Relay |
Protection | Reverse polarity, short circuit and overload |
Sensing Mode | Retroreflective Polarized |
Sensor Type | Polarized Retroreflective |
Series | |
Supply Voltage | 24-240 VAC ; 12-240 VDC |
Switch Type | Photoelectric |
Technology | Photoelectric |
Type | Retroreflective Sensors |
UPC Code | 782116111299 |
Weight | .3375 Pound |
Width | 1.81 Inch |
Overview

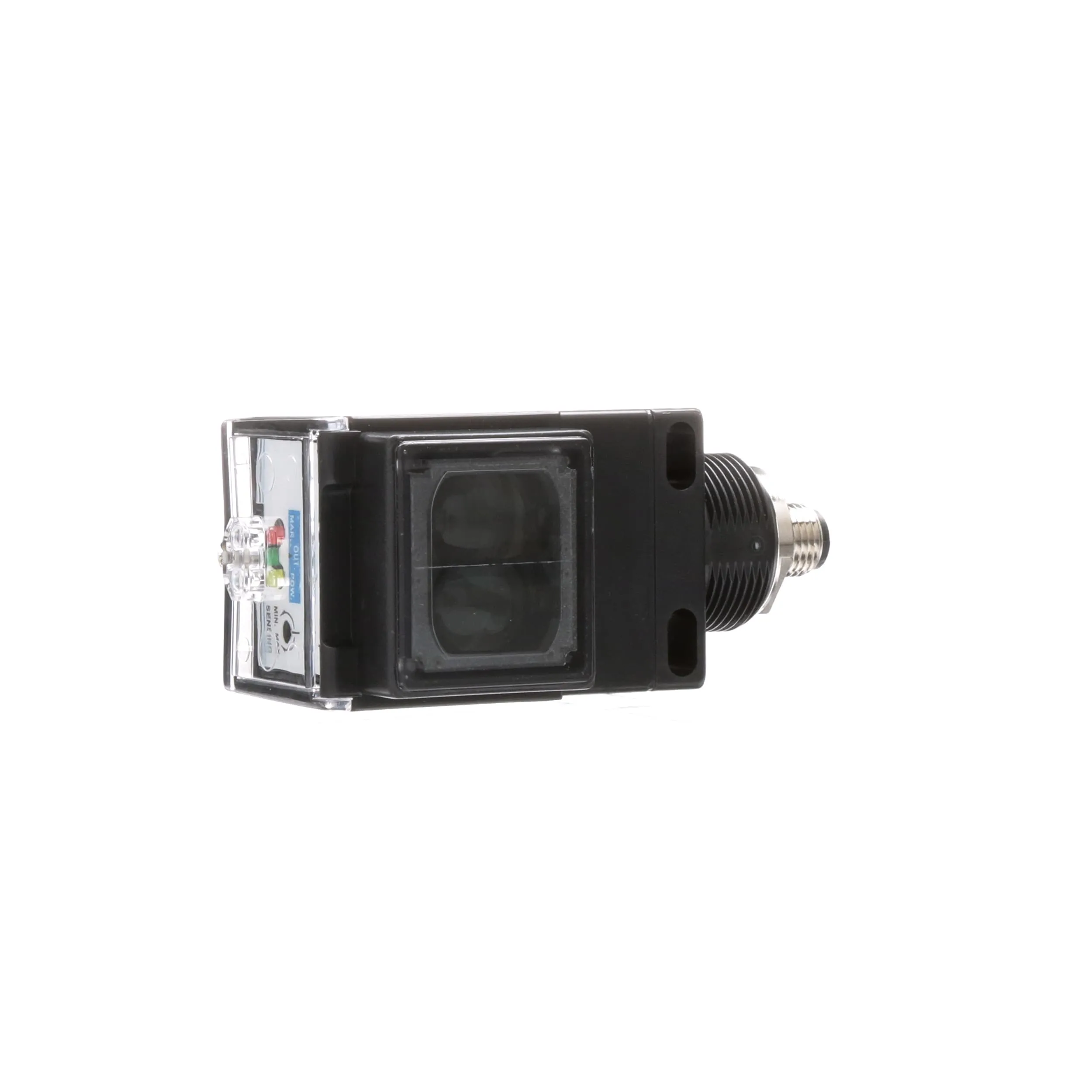

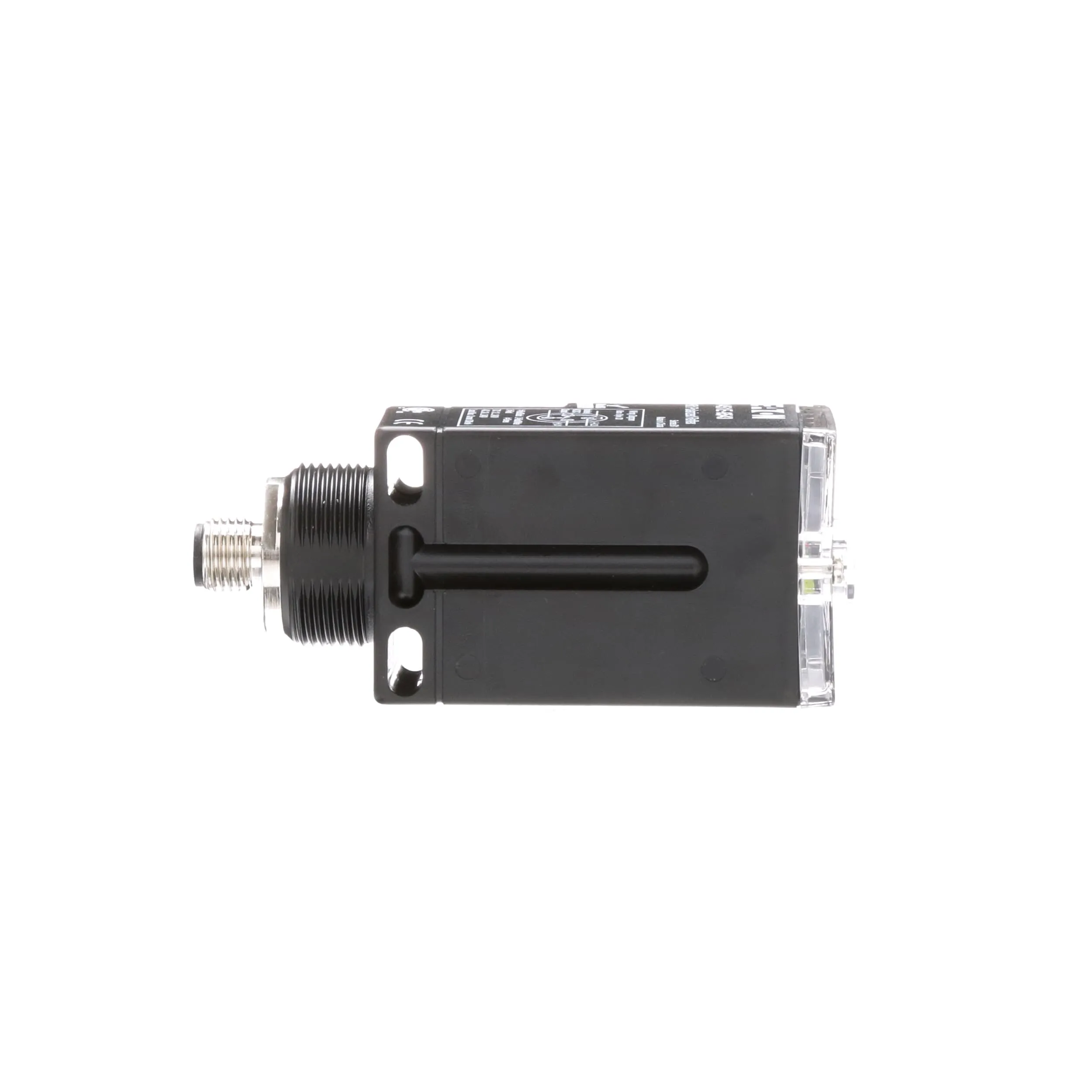

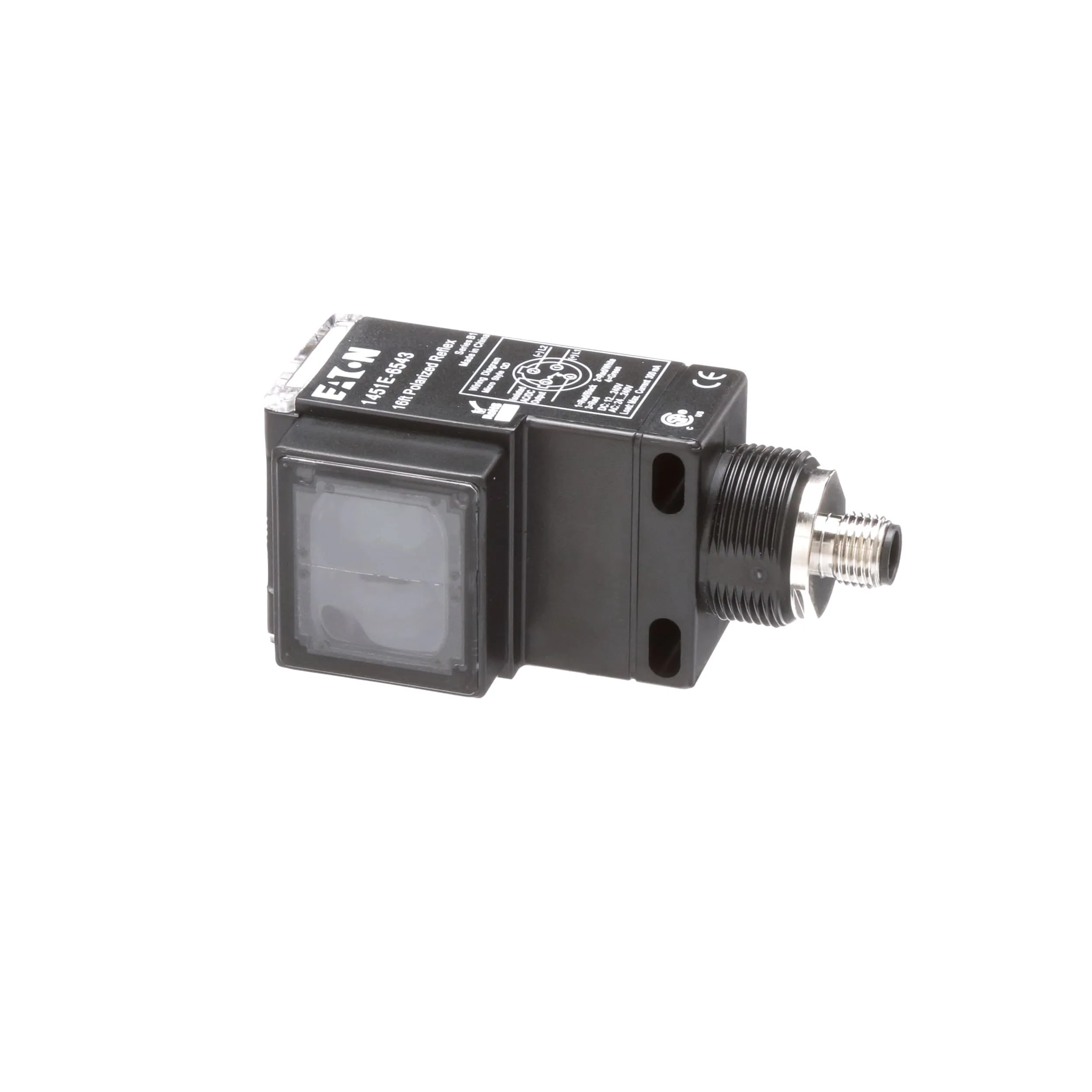

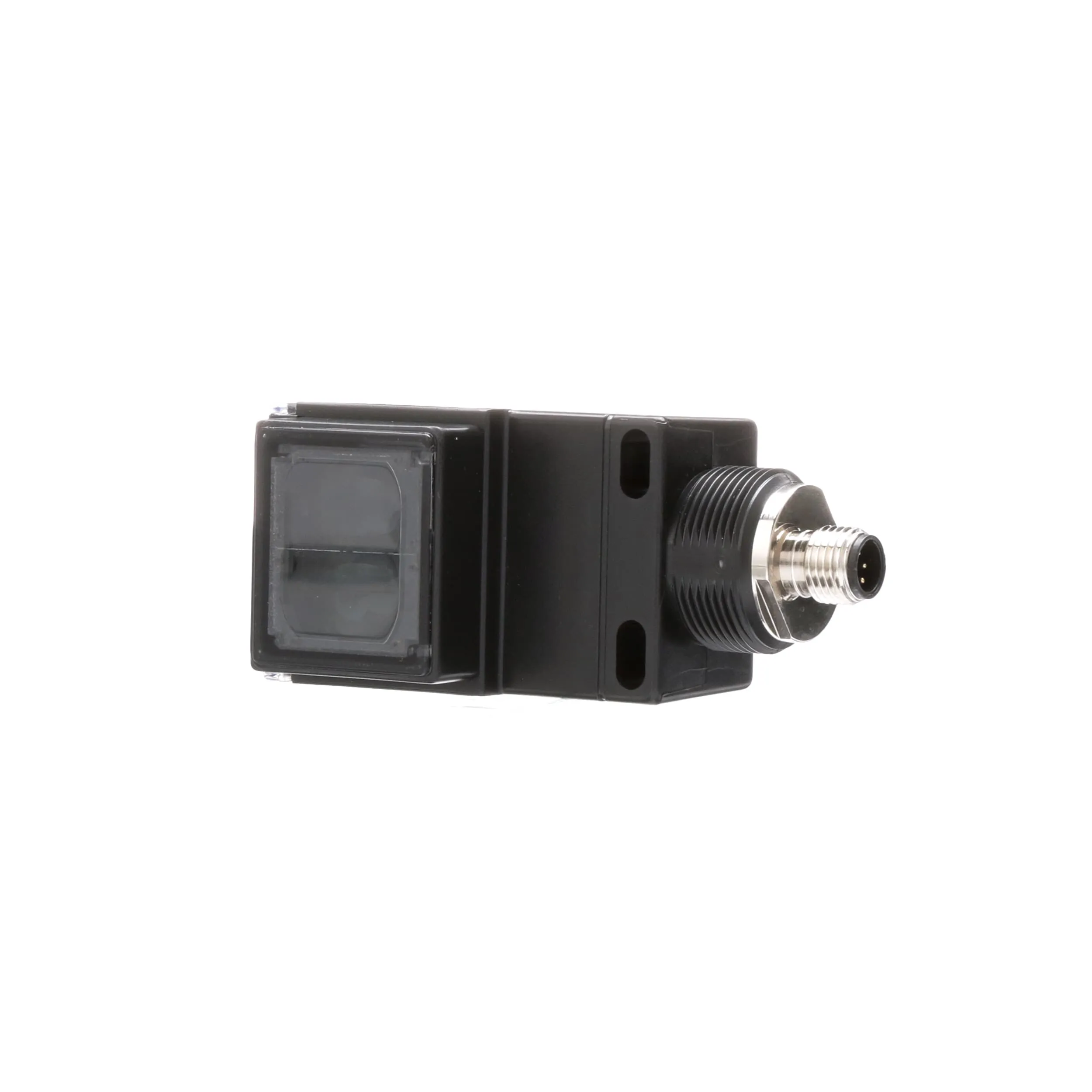

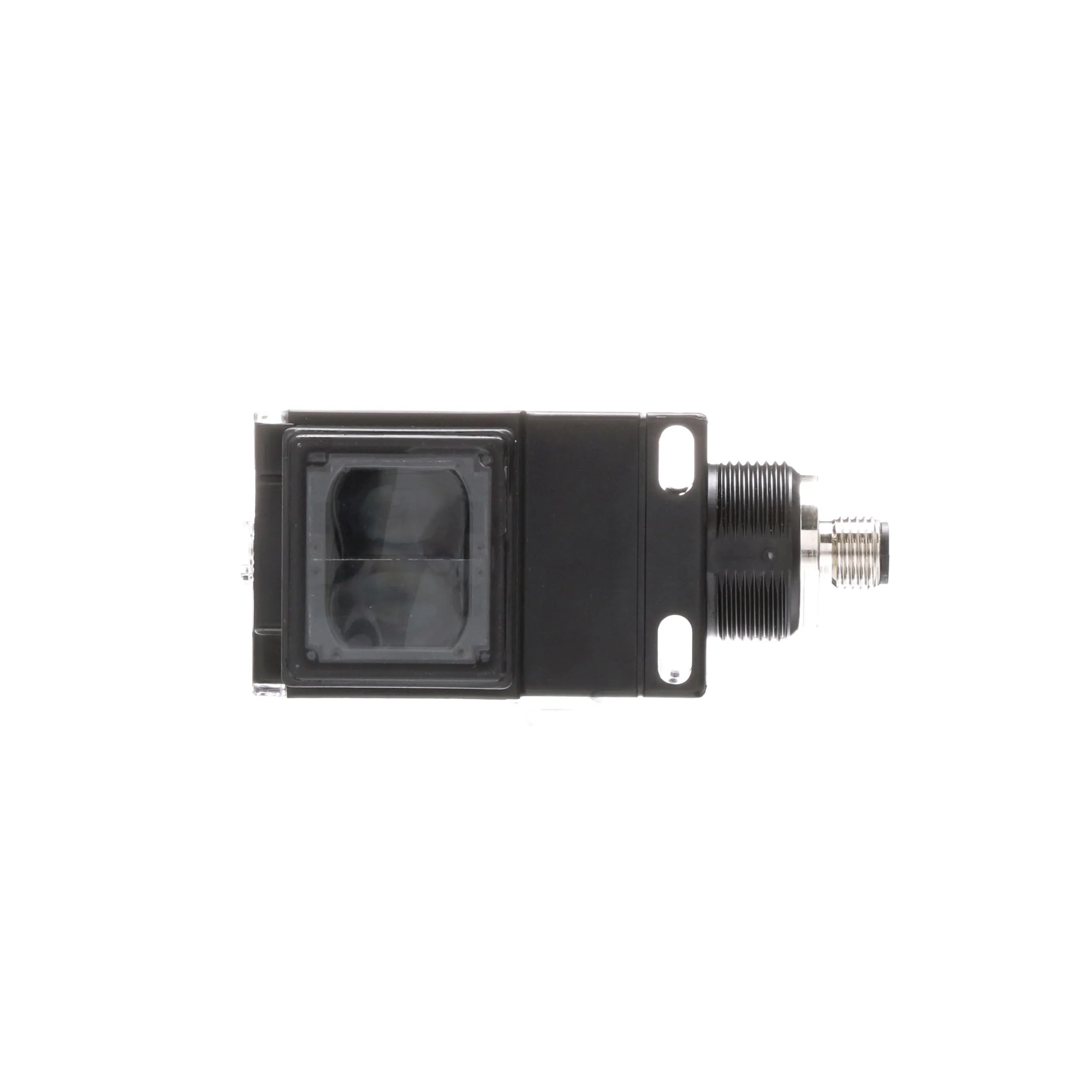

The new Enhanced versions of the Cutler-Hammer® 50 Series™ Photoelectric Sensors from Eaton's electrical business offer flexibility, durability and high optical performance in a cost-effective self-contained package. Choose from three output types, four sensing modes and three connection styles to tailor the sensor to exactly meet your needs. Sensors are available in thru-beam, reflex, polarized reflex, diffuse reflective, and clear object sensing modes. Brackets are available for easy mounting and to allow precise adjustment of sensor alignment.
