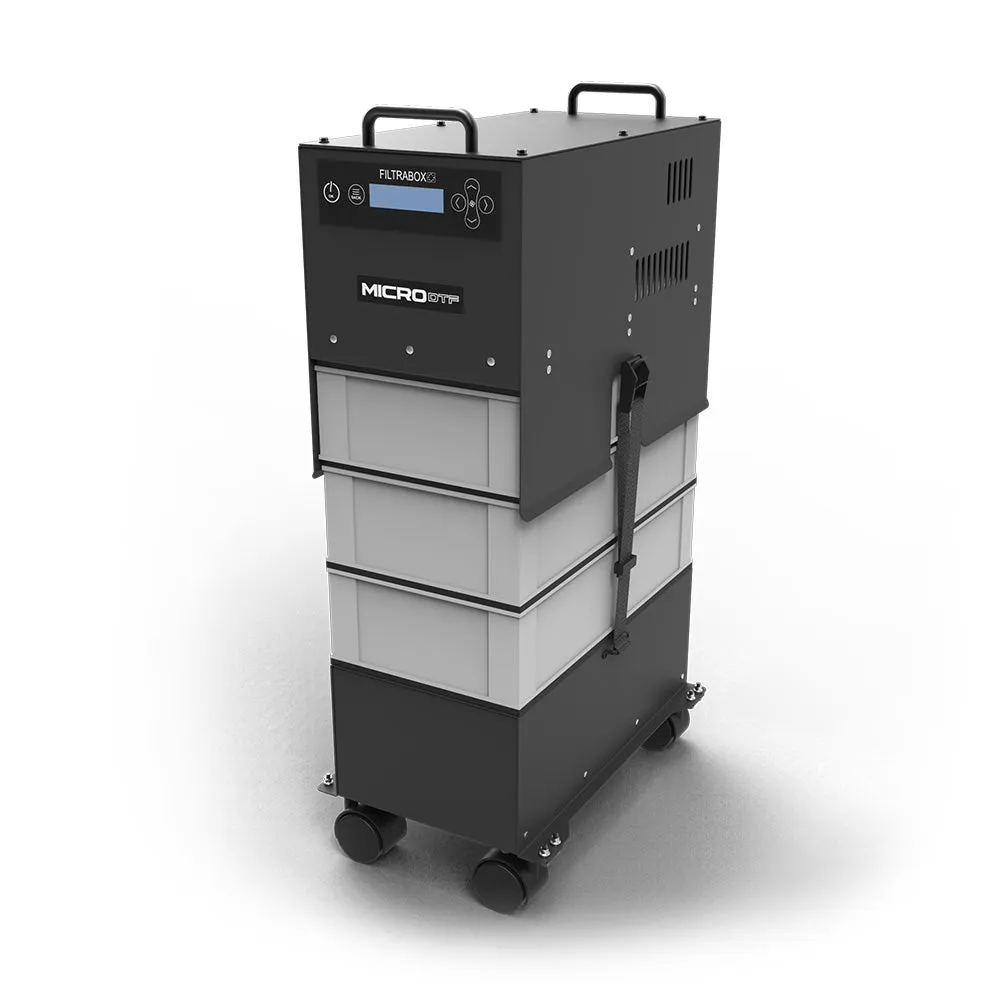

FILTRABOX Micro DTF Fume Extractor

Produce quality DTF Transfers in a Clean Air Environment

Micro DTF is Portable Fume Extractor for DTF Transfer Printing. Single-blower and 3 stage Hydrophobic HEPA filtration for excellent fog removal performance in a micro format. Great for small (11” to 14” width) roll-to-roll DTF Transfer Printing systems. Captures the thick oily fog generated during the curing of the printed transfers. Produce quality transfers for garments and other substrates in a clean air environment – your products and employees will benefit!

*This product is excluded from all promotional discounts and offers.
**All products will be drop-shipped directly from Filtrabox.
***Please note that there may be a potential lead time of up to 4 weeks. Additionally, the shipping fee will be applied to the order total once we have confirmed the order with the customer.

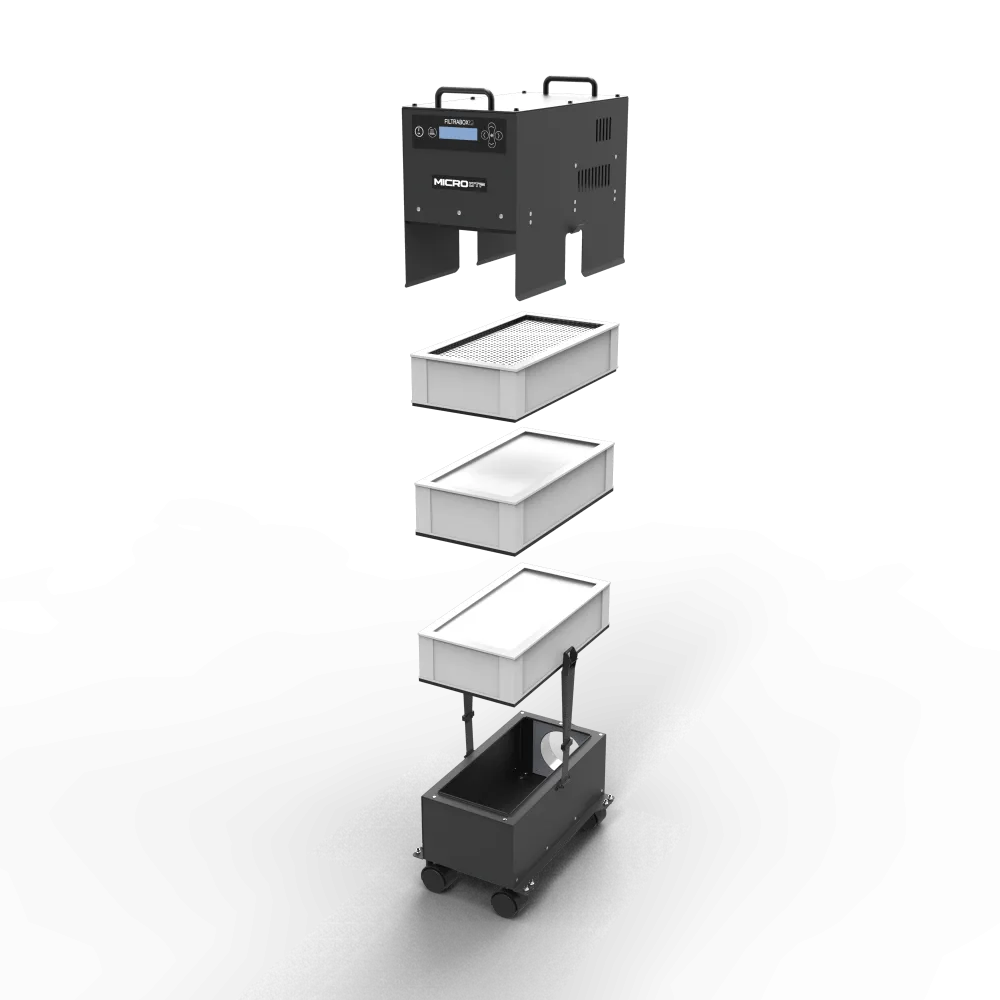

3 Stage Filtration: Rigid Separated Filters

Each individual filter has a specific function within Filtrabox’s 3 stages of filtration:

1. Polymer Pre-filter: The liquid-resistant polymer pre-filter protects the critical downstream HEPA filter from clogging ambient dust and liquid for overload. The filter media is encased in a strong aluminum cartridge to resist contamination bypass. The high surface area mini-pleat filter media ensures high capacity and efficiency for small applications.
2. Hydrophobic HEPA filter: The Hydrophobic HEPA media not only resists moisture but is also extremely strong and sheds excess liquid to provide the perfect barrier to the DTF Fog. The filter media is encased in a rigid aluminum cartridge to resist contamination bypass.   The high surface area mini-pleat filter media ensures high capacity and efficiency for small applications.
3. Gas Filter: The gas filter is filled with pure activated carbon to remove unpleasant odors at the molecular level. 10 lbs of the adsorption media ensure high capacity and efficiency for small applications.

Reverse Flow Configuration

Other systems route the air from the top of the filters to the bottom. The Filtrabox DTF fume extractors reverse the direction of flow, from the bottom to the top. This allows gravity to assist in draining the accumulated liquid within the filters into the built-in reservoir below for more capacity. This novel arrangement also protects the electronics and blowers from contact with the liquid.

Intelligent Flow Regulator

As filters become loaded with contaminants over time, they become more restrictive to airflow. The intelligent flow regulator proportionally increases power to the blowers to automatically overcome the restrictions and maintain consistent fume extraction. Just enter your flow setpoint and Filtrabox does the rest. Filtrabox will also let you know when to change filters.

Slim-Line Design

Others try to achieve space savings by offering smaller machines. But this results in less filter capacity, more noise, and less airflow.
The Slim-line design shrinks the width of the extractor and relocates critical performance features into the plentiful depth dimension, allowing for maximum airflow, filter capacity, and noise reduction in a space-saving package -no compromises.

Robust, Simple User Interface

Dust, splash-proof, and impact-resistant, the new membrane touchpad interface offers both improved protection against industrial contaminants and simplified intuitive control. A fume extractor should simply keep the air clean and work when you want it to work.

Fast and Friendly Tech Support: Modularity for Serviceability

Our fume extractors comprise many complex electronics components and sensors to monitor and control their performance. However, we have simplified the Filtrabox by consolidating the components into two simple and removable module:

Electronics Module: This module includes all the interface, control, blower,
and power systems.

In the event of a field issue, our tech support need only focus on a basic diagnosis to quickly dispatch the module for immediate replacement. – no tech experience required.

Extreme Air Power: Digital Blower w/ Hyper bearings

All Filtrabox systems use digital blowers to create powerful, reliable suction. Traditional brushed blowers inevitably wear out, lose suction and need replacement. Filtrabox’s combination of digital contactless rotors and contaminant-resistant hyper bearings allows for extreme rotational speeds and maintenance-free operation for years; more suction power – no maintenance.
