Name: High-Precision Fixed Carbon Dioxide (CO2) Gas Detector (0-5%) – Reliable Indoor Air Quality Monitoring with Real-Time Alerts
SKU: 304572

Product Details ＋

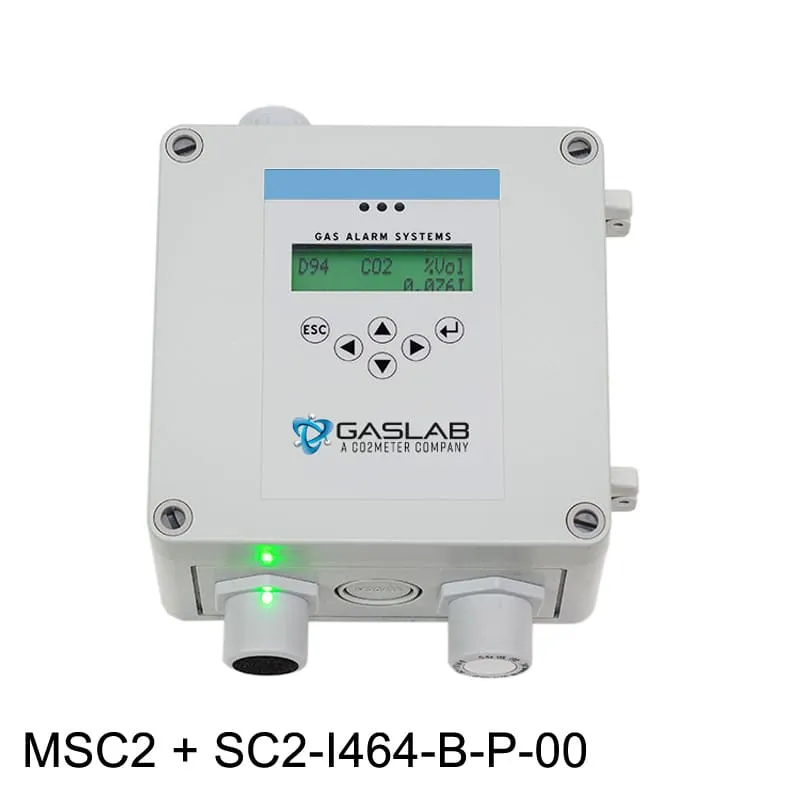

The Fixed Carbon Dioxide CO2 Gas Detector (MSC2 SC2-I464-B-P-00) is designed to protect individuals near toxic CO2 gas in commercial and industrial applications. This fixed gas safety monitor measures hazardous CO2 levels between 0-5% and detects hazards in order to protect facilities from overexposure.

Fixed carbon dioxide gas detectors are critical in pharmaceutical, petrochemical, food and beverage, poultry, indoor agriculture, and research applications - or anywhere CO2 is being used, stored, or produced.

Features

Modular easy-to-use design
1-3 gas sensor capabilities
3 configurable relays
2 sensors max may be different sensors of the SC2 series, max 3 of them analog with 4-20 mA signals
Custom configuration dependent upon location and application
Warning buzzer/LED alarm, fault operation option
Compatible with a wide range of BMS
Protocol for DGC-06 or Modbus protocol
Operating voltage input 100-240 VAC or 24VDC

Specifications

Measurement Range: 0-5%
Gas Type: Carbon Dioxide
Housing Type C/E: Polycarbonate
Installation: Wall Mounted
Knockouts for Cable Entry: Standard 6x M20/25
Ingress Protection: IP65
Temperature Range: -13°F to 140°F (-30°C to 50°C)
Humidity Range: 15-90% RH non-condensing
Storage Temperature: -4°F to 149°F (0° to 20°C)
Power Supply: 100-240 VAC or 24VDC
Power Consumption: 24 V DC | Max. 60 mA (1.5 VA), w/ sensor, w/o WAO
Alarm Relay (3): 5 A Dry Contact Configurable
Transistor Output (2): 24 V DC/0.1 A
Analog Input (2/3): 4-20mA, overload and short-circuit proof, input resistance 130 proportional, overload and short-circuit proof, load ≤ 500 4–20 mA = measuring range
Analog Output Signal (1):
- 2.4–< 4 mA = tolerable under range
- 20–21.2 mA = tolerable over range
- ≥ 21,2 mA= error over range
- ≤ 2,0 mA = fault
Dimensions: 5.12 x 5.12 x 2.95 in. (130 x 130 x 75 mm)
Weight: 1.32 lbs. (0.6 kg)
