Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 132360 |
| Body Style | Rectangular |
| Current, Switching | 200 mA |
| Housing Material | Nylon (PA-GF35) |
| IP Rating | IP69K |
| Measurement Range | 40 mm |
| Mounting Type | Non-Flush |
| Output | PNP-NO |
| Primary Type | Inductive Proximity Sensors |
| Series | |
| Shielding | Unshielded |
| Supply Voltage | 30 VDC |
| Termination | QC Tabs |
Overview

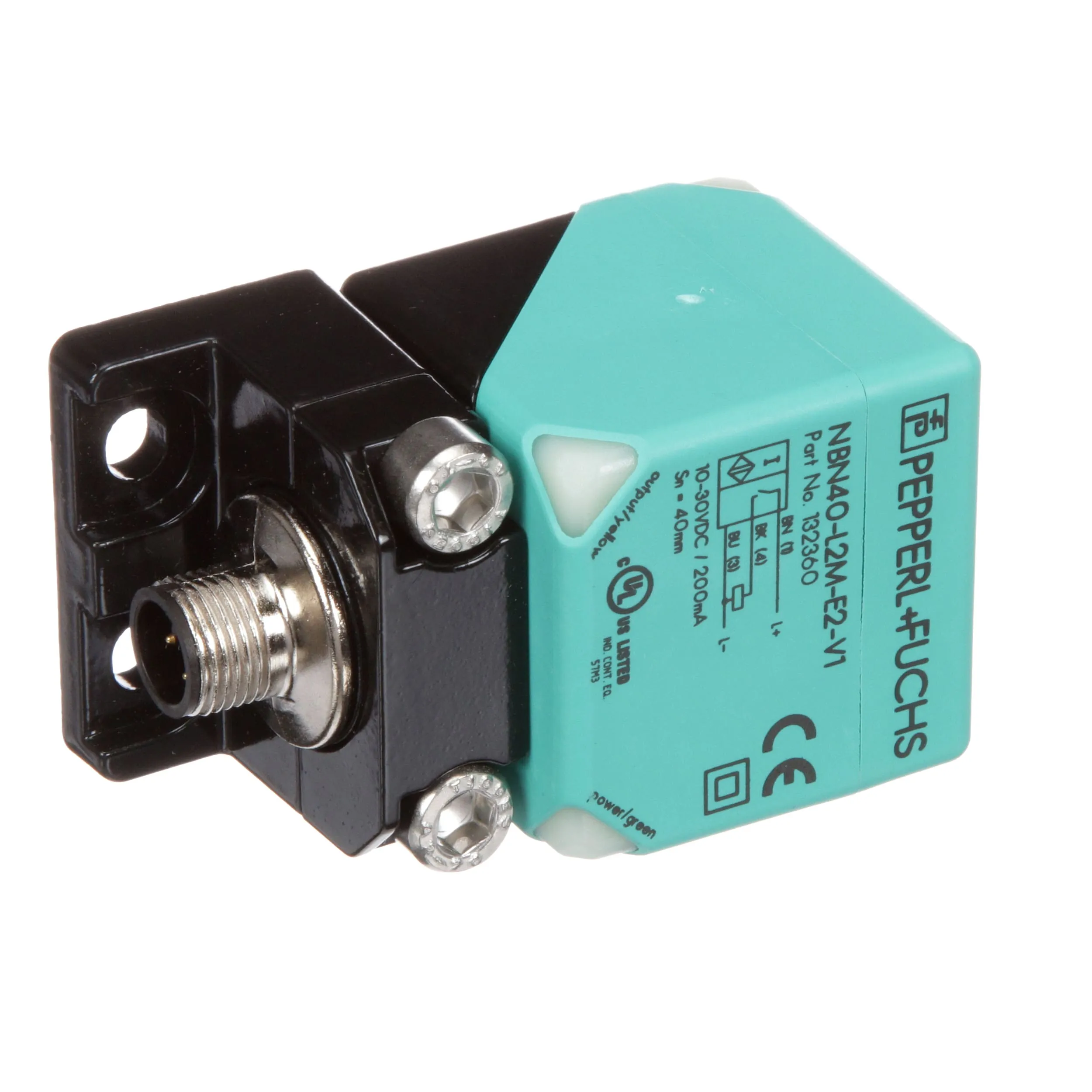

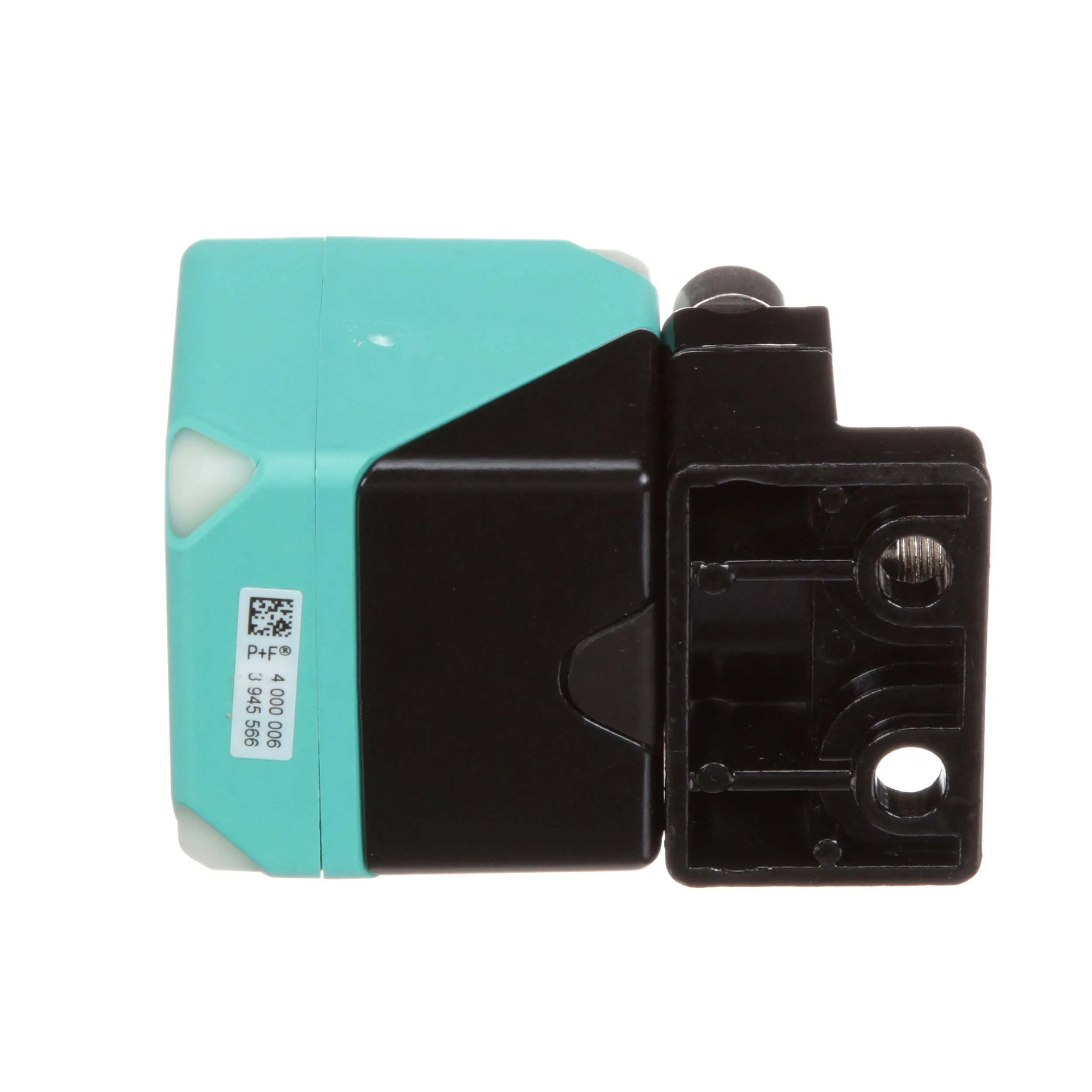

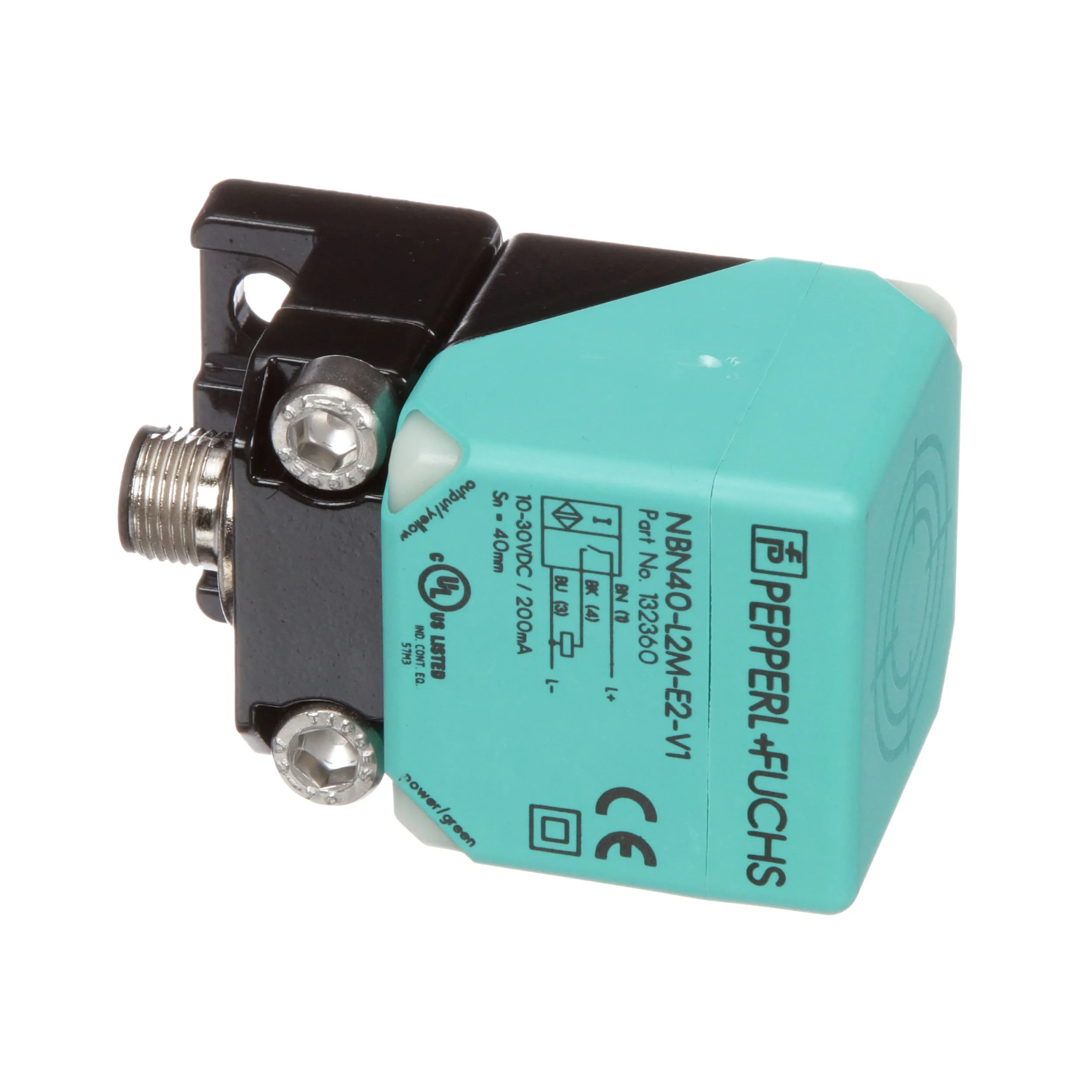

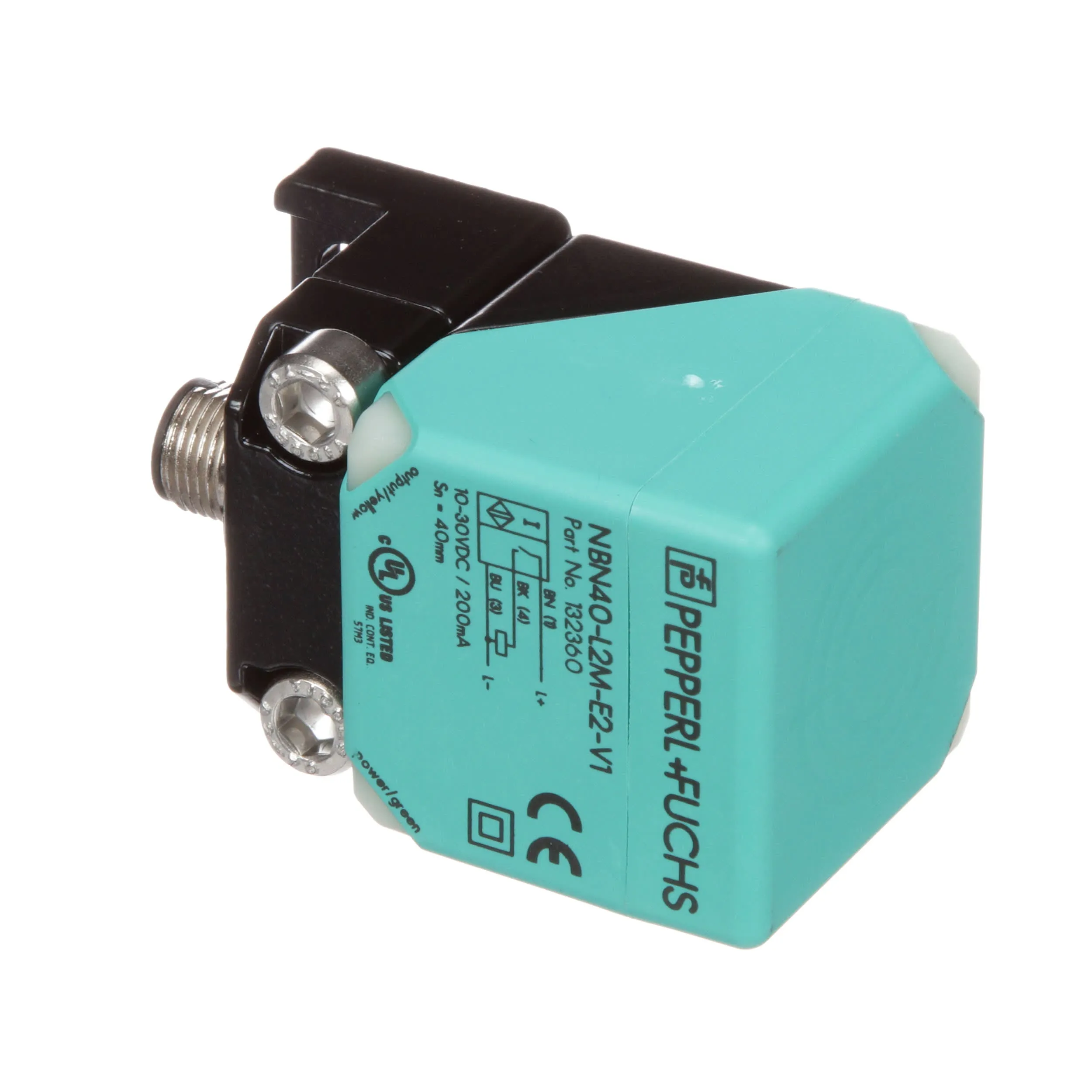

Cube style proximity sensors feature a 5-way quick pivot sensing head that rotates for sense direction. These 40 mm × 40 mm sensors are available in 3- and 4-wire DC models as well as 2-wire AC versions. The L series is a basic series with plastic housing and base. The L2M offers plastic housing, metal base and bracket, while the L3M has an all metal housing, base and brackets. Features:
