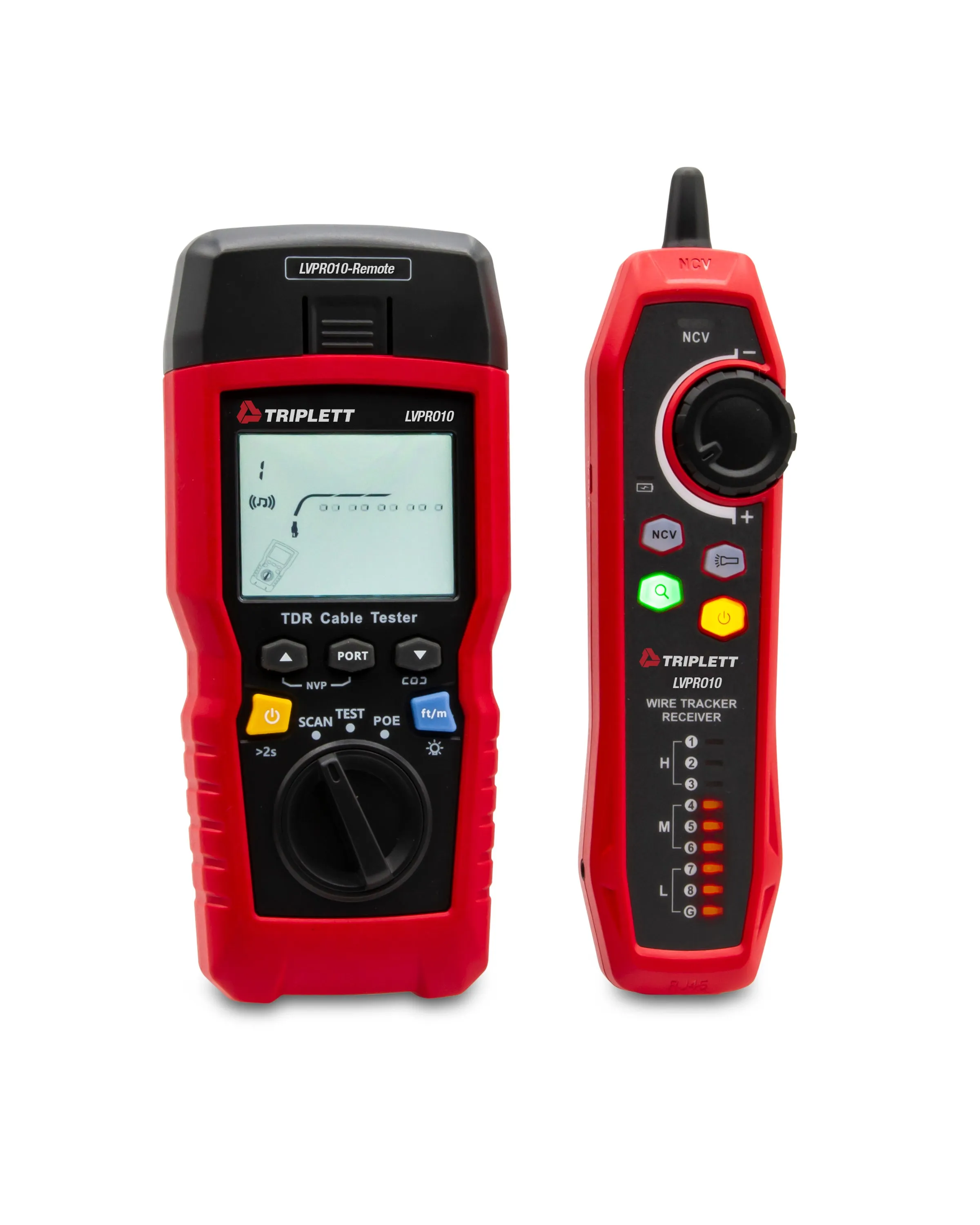

The Triplett Model LVPRO10 TDR/Cable Tester offers a comprehensive solution for LAN installers and repair technicians. It tests and traces both twisted pair (CAT5E/6/6A/8) and coax cables, detects cable length, and checks twisted pair continuity, opens/shorts, reversals, and split pairs.
DESCRIPTION
The Triplett Model LVPRO10 TDR/Cable Tester offers a comprehensive solution for LAN installers and repair technicians. It tests and traces both twisted pair (CAT5E/6/6A/8) and coax cables, detects cable length, and checks twisted pair continuity, opens/shorts, reversals, and split pairs. Detect PoE presence and perform an Ethernet port test with this versatile tool. Featuring a 2.8" backlit graphical LCD, built-in RJ11, RJ45, and coax ports, this tester ensures optimum visibility and easy connection. Use the tone mode to trace cables effortlessly. Its auto power off feature and 70VDC input protection add to the convenience and safety. The package includes a tracer probe with a built-in NCV Detector (>40V), flashlight, wiremap indicator lights, a low battery indicator, an earphone jack for noisy environments, and more.
CATEGORY:
Features
- Twisted Pair and Coax Cable Testing: Test and trace CAT5E/6/6A/8 twisted pair and coax cables efficiently.
- Cable Fault Identification: Identify continuity, opens/shorts, reversals, and split pairs in twisted pair cables.
- PoE Detection: Detect PoE presence and identify whether it's endspan or midspan (802.3AF, 802.3AT, 802.3BT).
- Ethernet Port Test: Perform thorough Ethernet port tests for reliable networking.
- Cable Tracing: Use the tone mode to trace cables effortlessly.
-
2.8" Backlit LCD: Enjoy clear visibility with a 2.8" backlit graphical LCD.
- Built-In Ports: Hassle-free connectivity with built-in RJ11, RJ45, and coax ports.
- Comprehensive Tracer Probe: Includes a tracer probe with built-in NCV Detector (>40V), flashlight, wiremap indicator lights, low battery indicator, and earphone jack.
- Includes: tracer probe with charging cable, remote adapter, RJ45 and RJ11 adapter cables, RJ11 cable with alligator clips, F- to F-connector adapter, (4) AAA batteries, and carrying bag
Specifications
| LVPRO10 | |
| Cable Types | UTP, FTP and SSTP twisted pair |
| 50Ω, 75Ω, 93Ω coax cable | |
| Cable Length Test | Range: 1640ft (500m) Resolution: 1ft (0.33m) |
| Accuracy: ±4% or 2ft (0.6m) | |
| POE detection | POE standards: 802.3AF, 802.3AT, 802.3BT |
| Ethernet Port Test | Yes |
| Cable Location | Yes |
| Port Blink | Yes |
| Power | (4) AAA Batteries |
| Tester Dimensions | 7.1 x 3.1 x 1.5” (181 x 80 x 39mm) |
| Weight | 12.7oz (360g) |
| Probe Dimensions | 7.8 x 1.9 x 1.3” (197 x 48 x 34mm) |
| Weight | 4.5oz (127g) |
