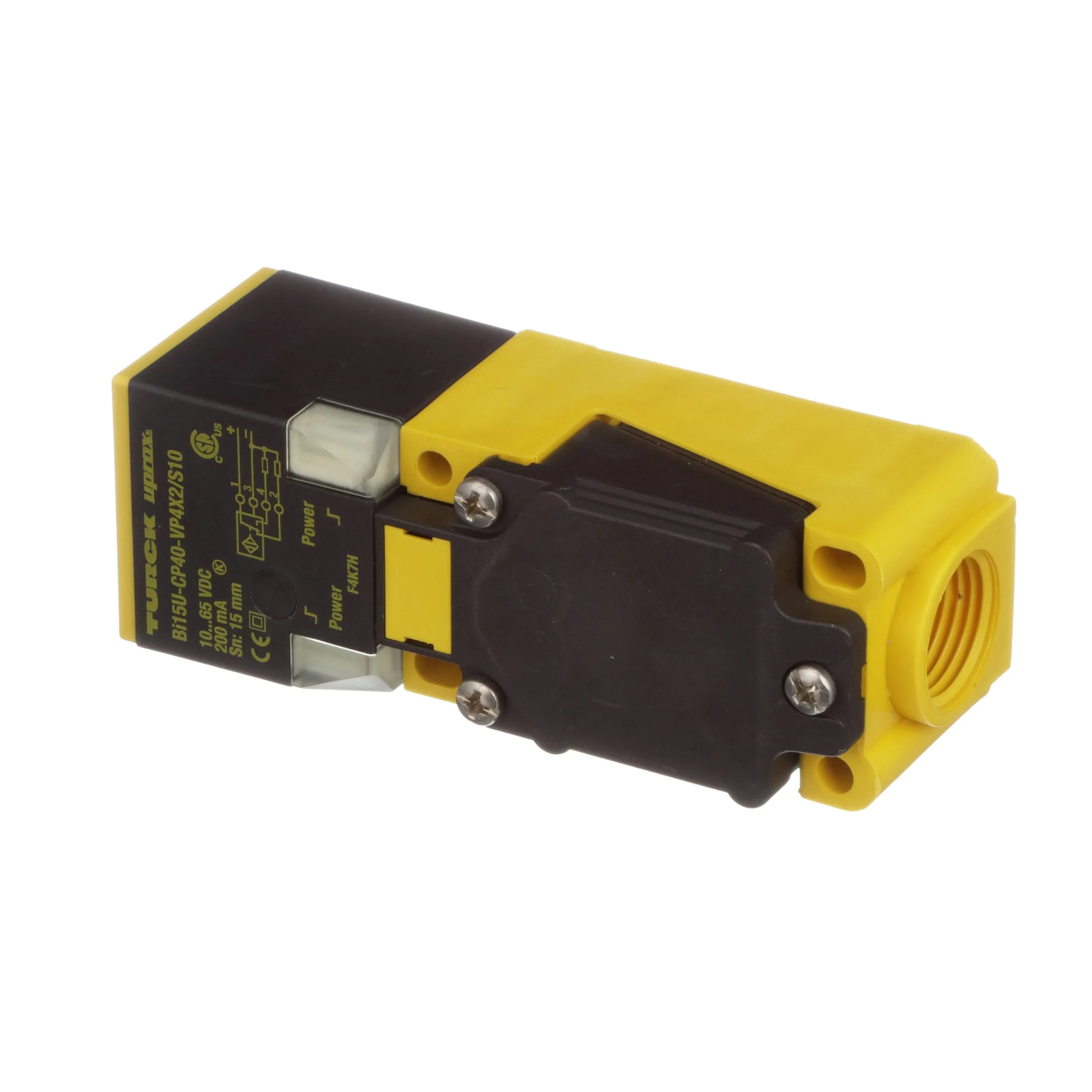

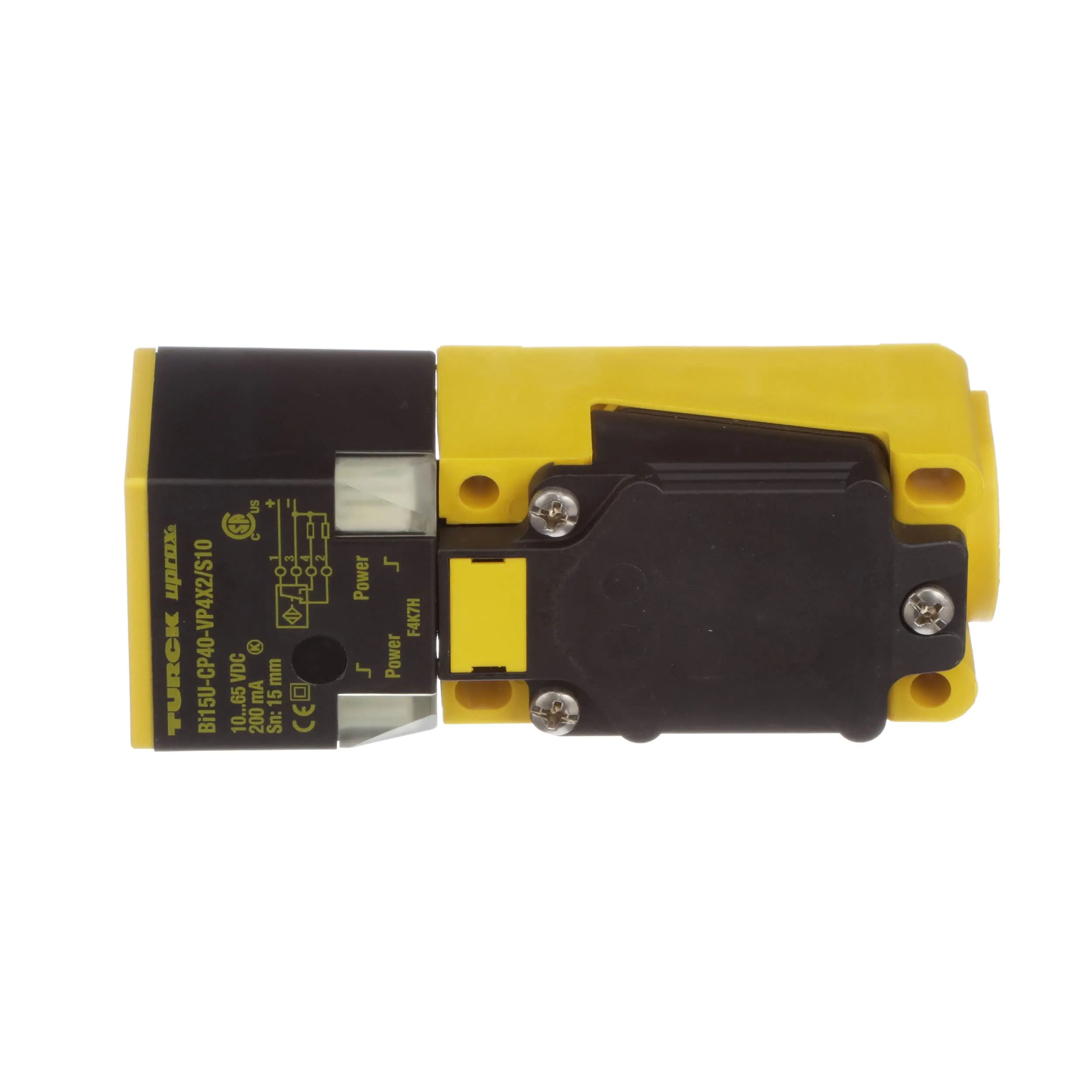

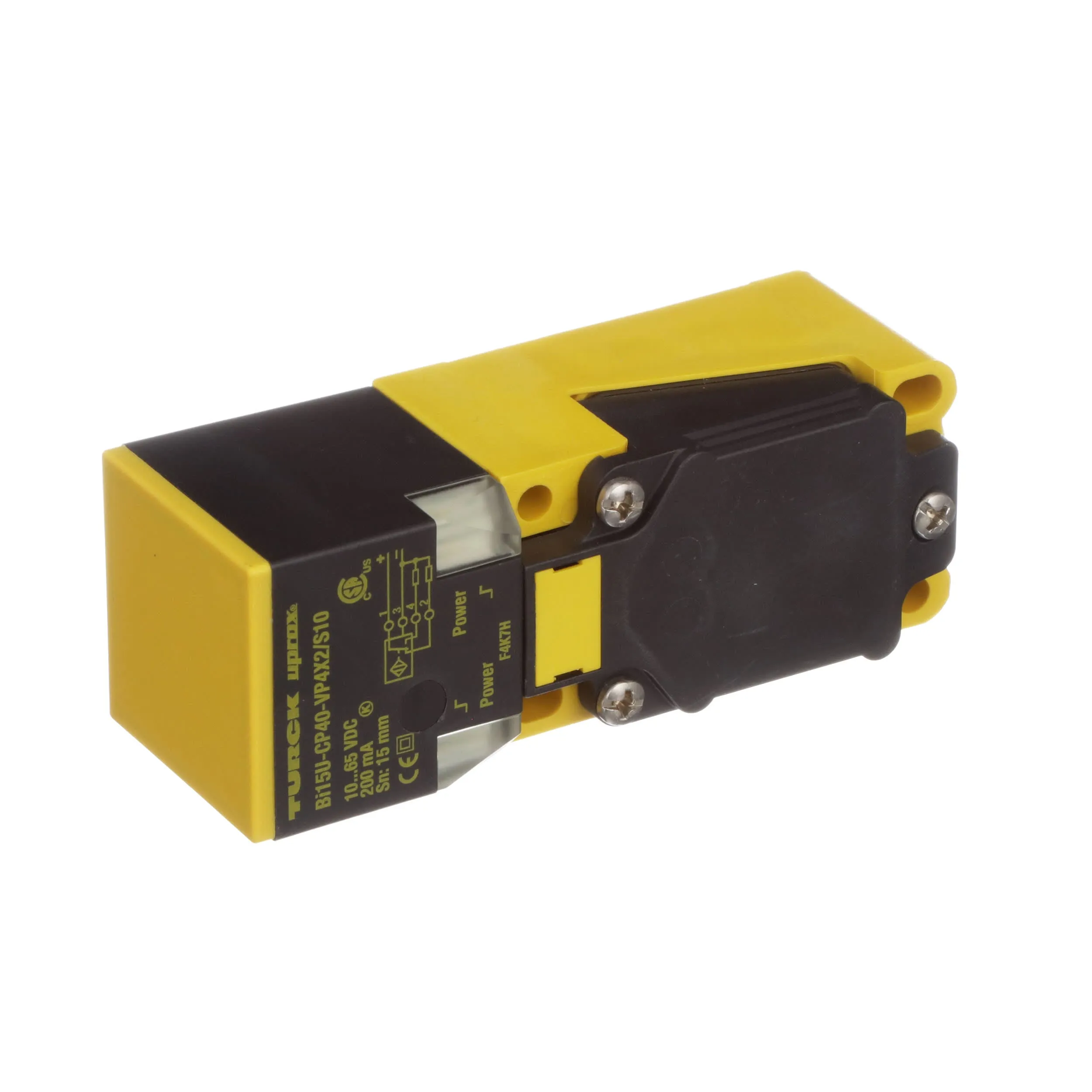

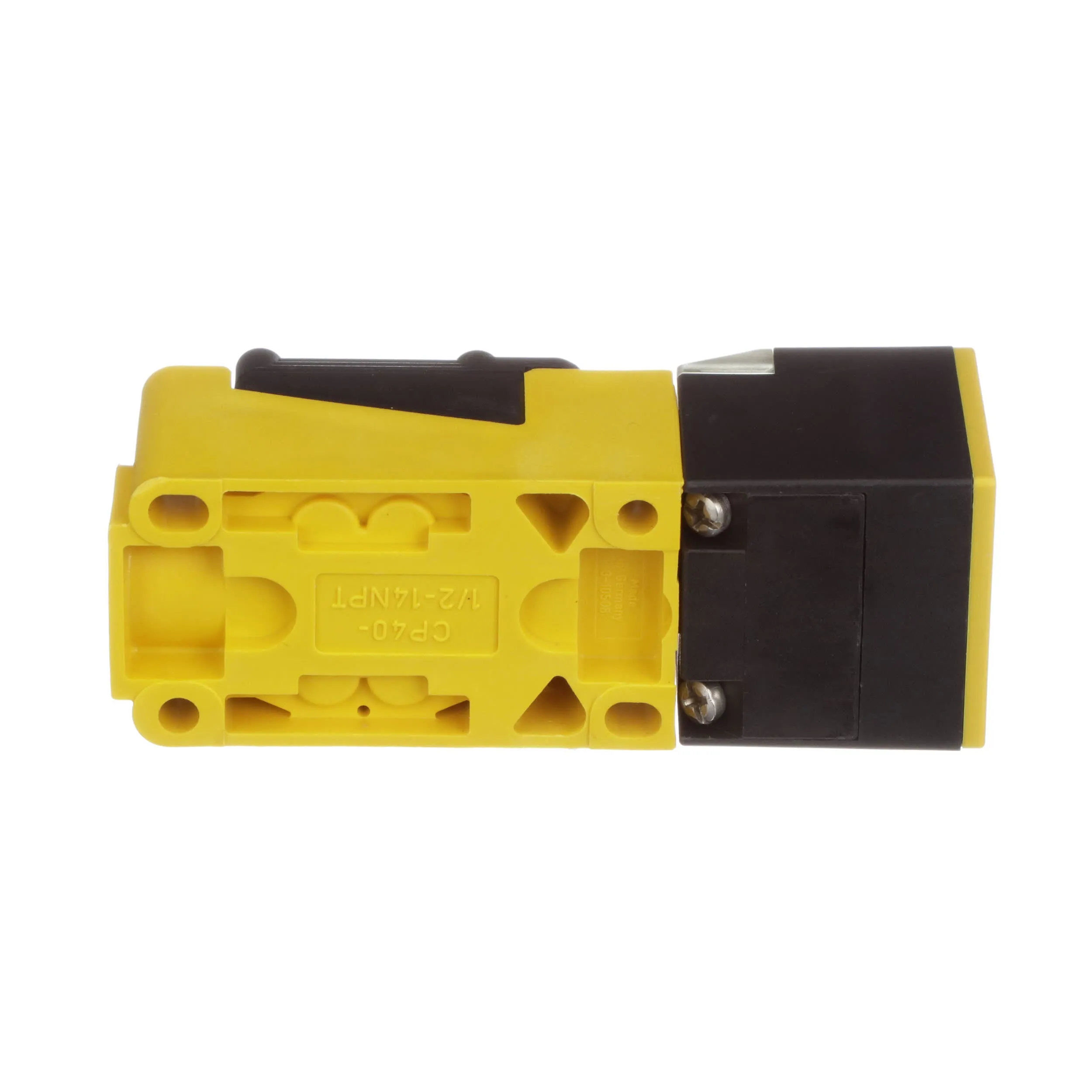

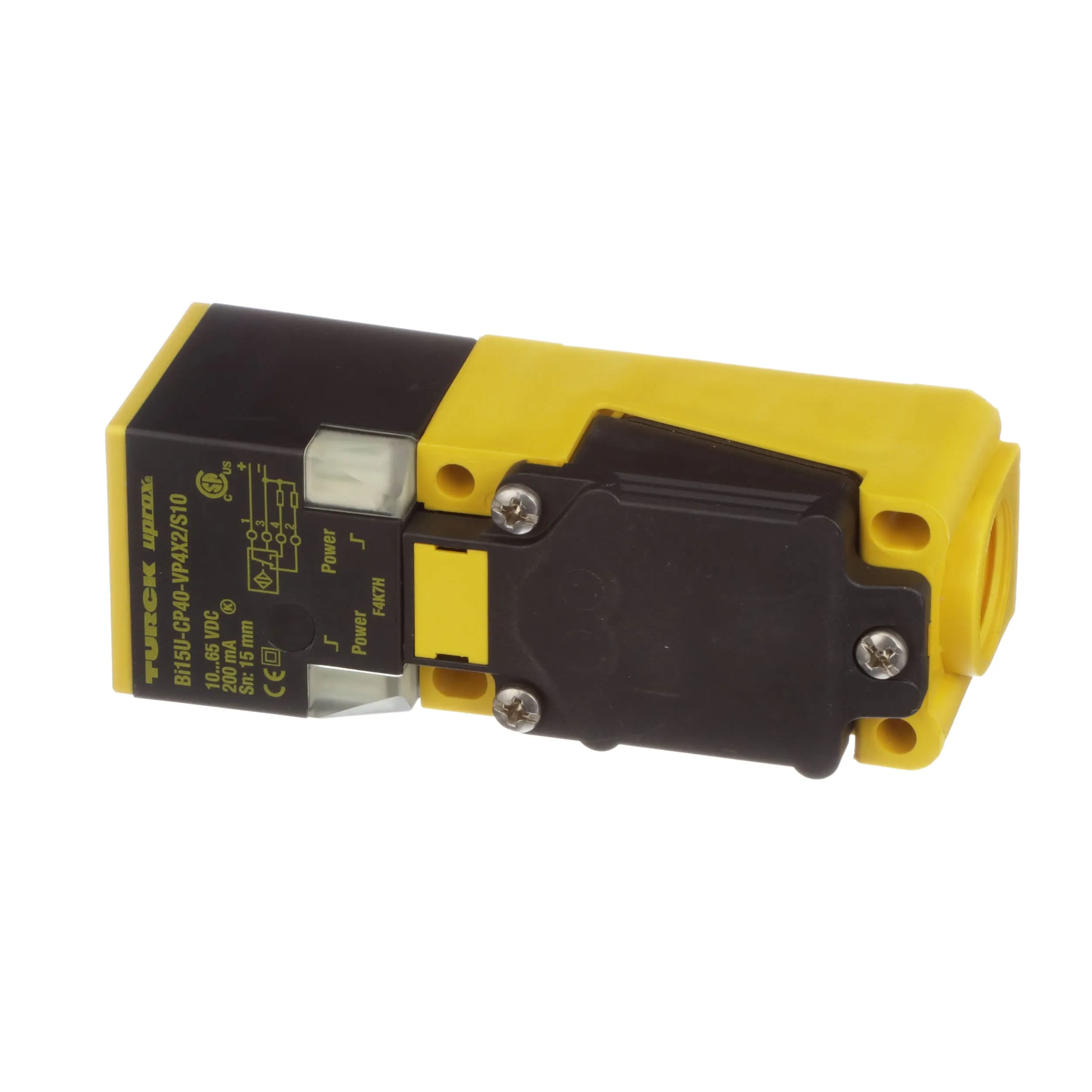

Name: TURCK BI15U-CP40-VP4X2
SKU: 549935

Product Details ＋

Product Attribute	Attribute Value
Alternate Mfr Part Number	M1540501
Body Style	Rectangular
Current, Switching	200 mA
Frequency, Switching	2 kHz
Housing Material	Plastic, PBT
Indicator	Green (Power), Yellow (Output)
IP Rating	IP67
Maximum Operating Temperature	85 C
Measurement Range	15 mm
Minimum Operating Temperature	-30 C
Mounting Type	Bracket/DIN Rail
Operating Temperature, Maximum	85 C
Operating Temperature, Minimum	-30 C
Output	PNP
Primary Type	Inductive Proximity Sensors
Series
Standards	UL Listed
Supply Voltage	65 VDC
Termination	Wired Connector

Overview

4-Wire NPN⁄PNP Output, 15 mm Sensing Distance, 10 to 65 VDC Voltage Rating, Inductive Sensors

Eliminate limit switch failure with long-range combiprox sensors. Up to 40 mm range with 9 sensing positions, weld-field immunity and extended temperature range. with the enhanced benefits of Uprox technology senses all metals at the same rated sensing distance. Please contact your local Allied sales representative for additional information.

Features

Multi-Position Sensor Head (9 Positions)

Short Circuit and Overload Protection Incorporated

Reverse Polarity and Wire Break Protection

LEDs Indicate: Output Energized, Short Circuit Warning and Power On

Complementary Output (1 N.O. and 1 N.C.)
Specification

Environment Rating: NEMA 1, 3, 4, 6, 13; IP 67

Operating Temperature: –13°F to 158°F

Continuous Load Current: 200 mA Max.

Voltage Drop: 1.8 VDC at 200 mA
