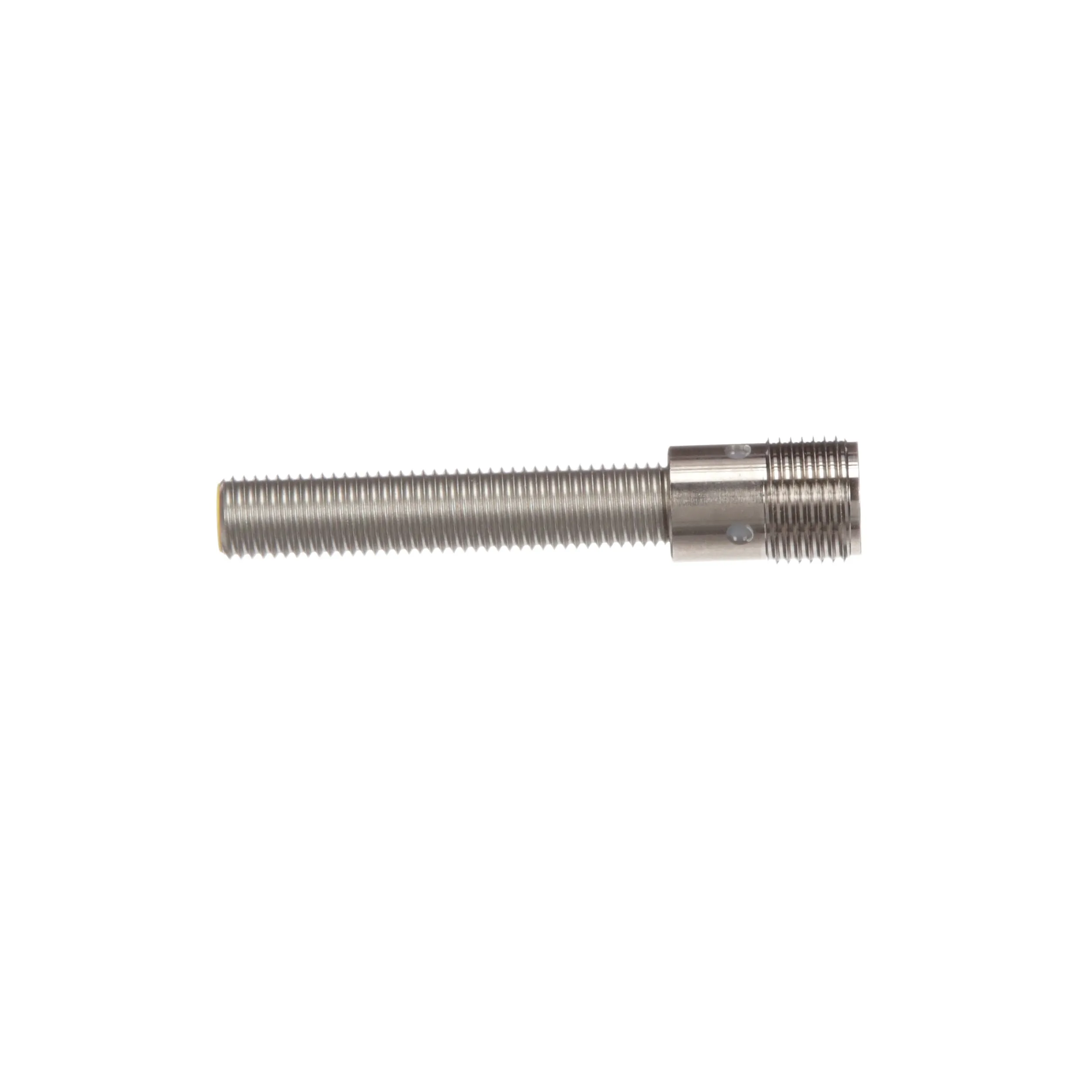

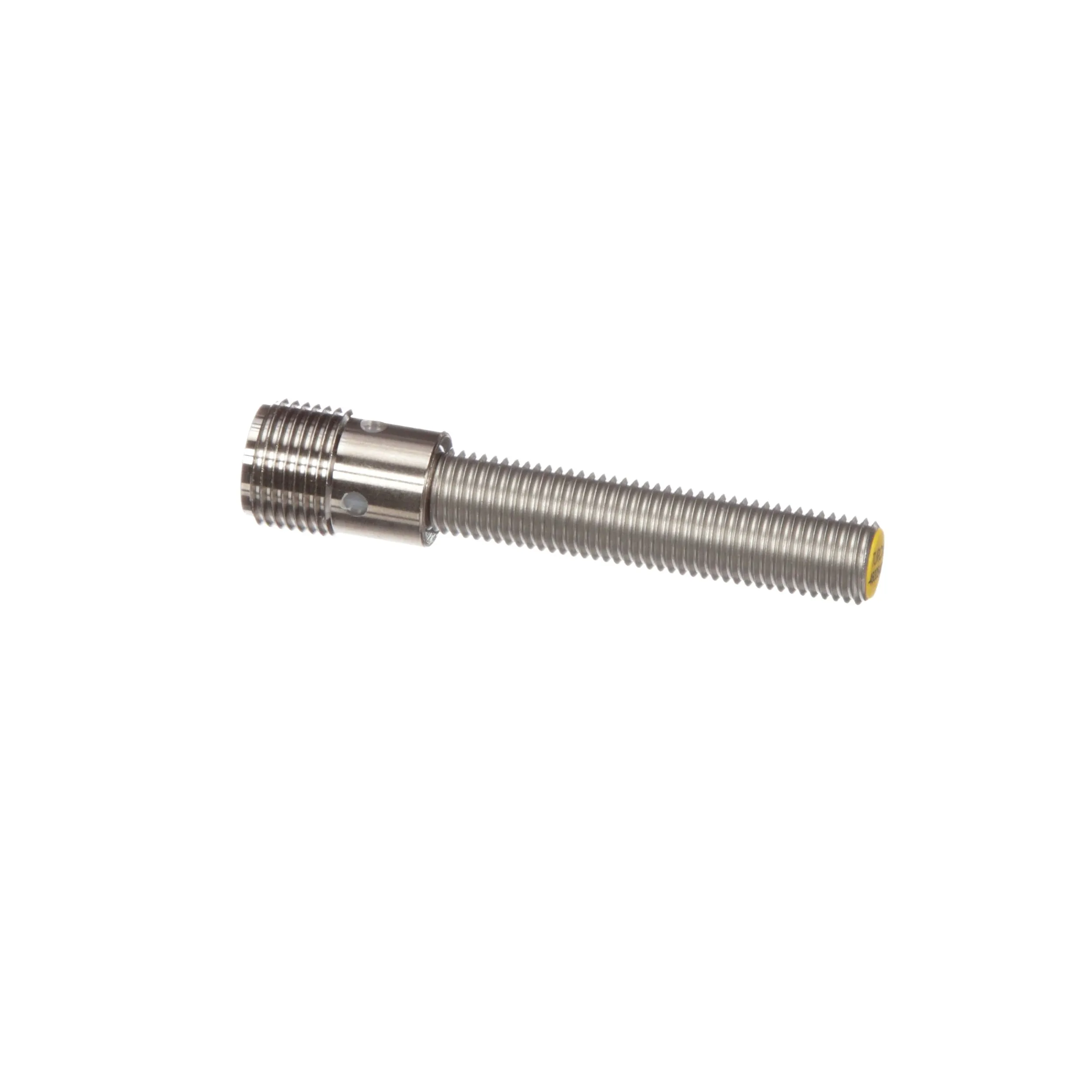

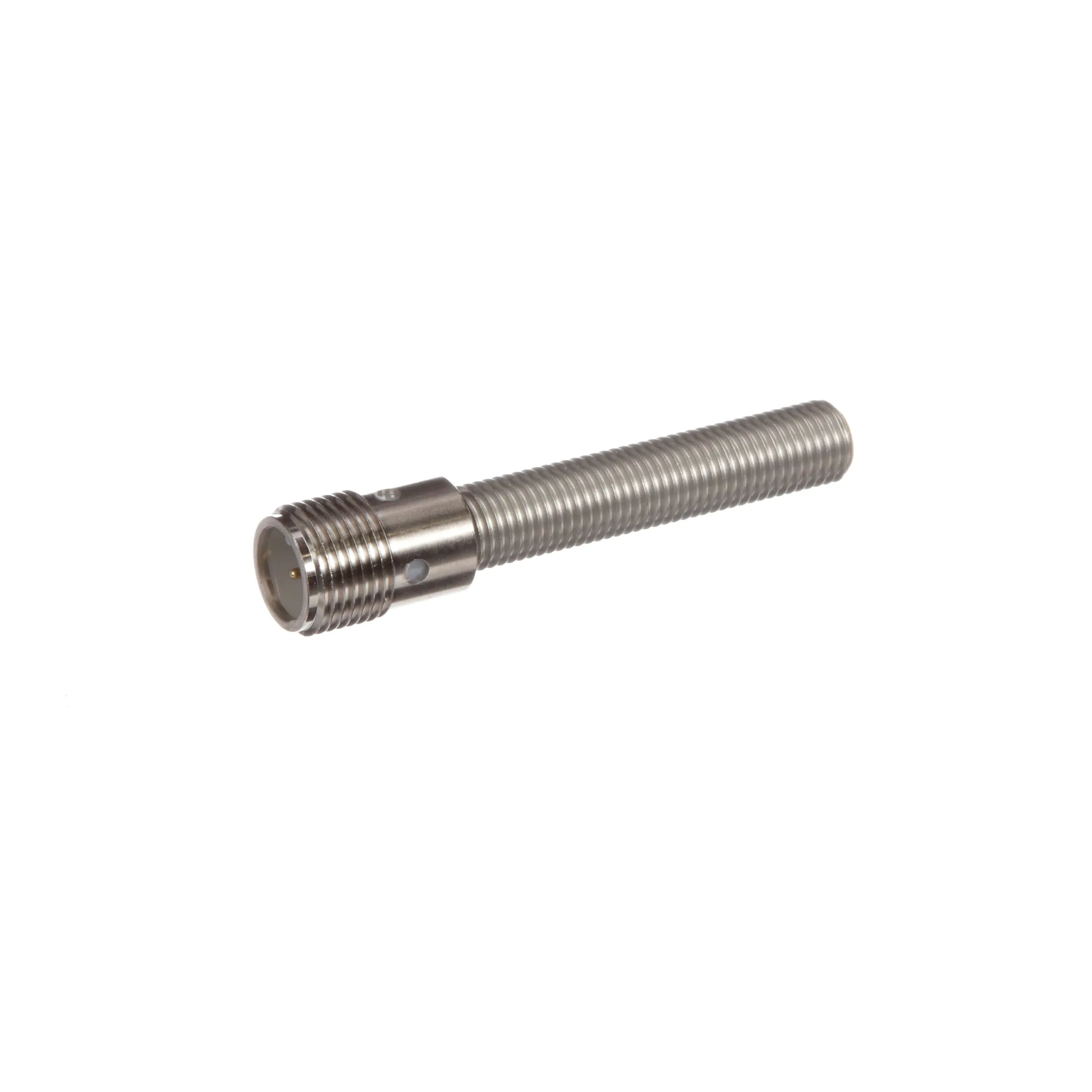

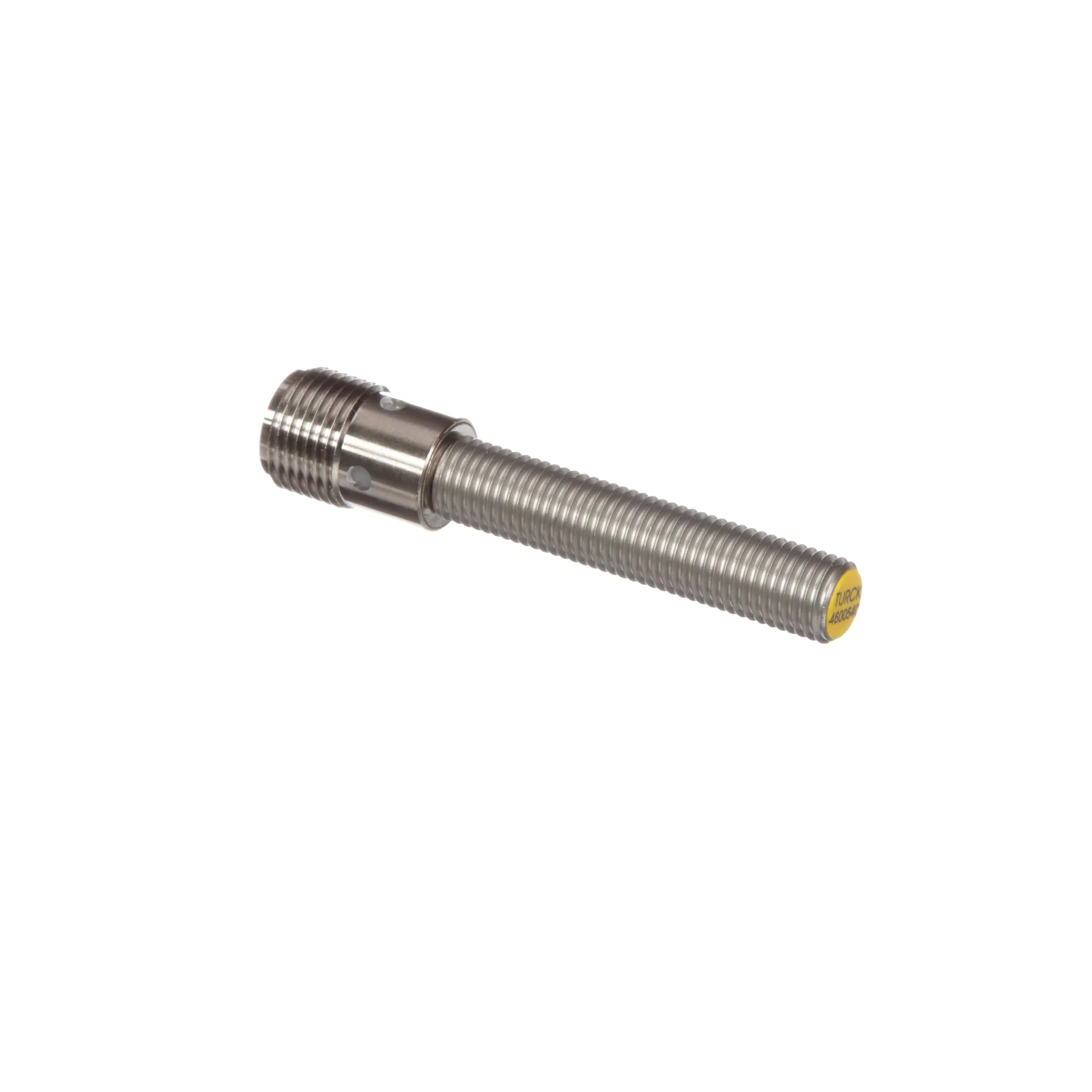

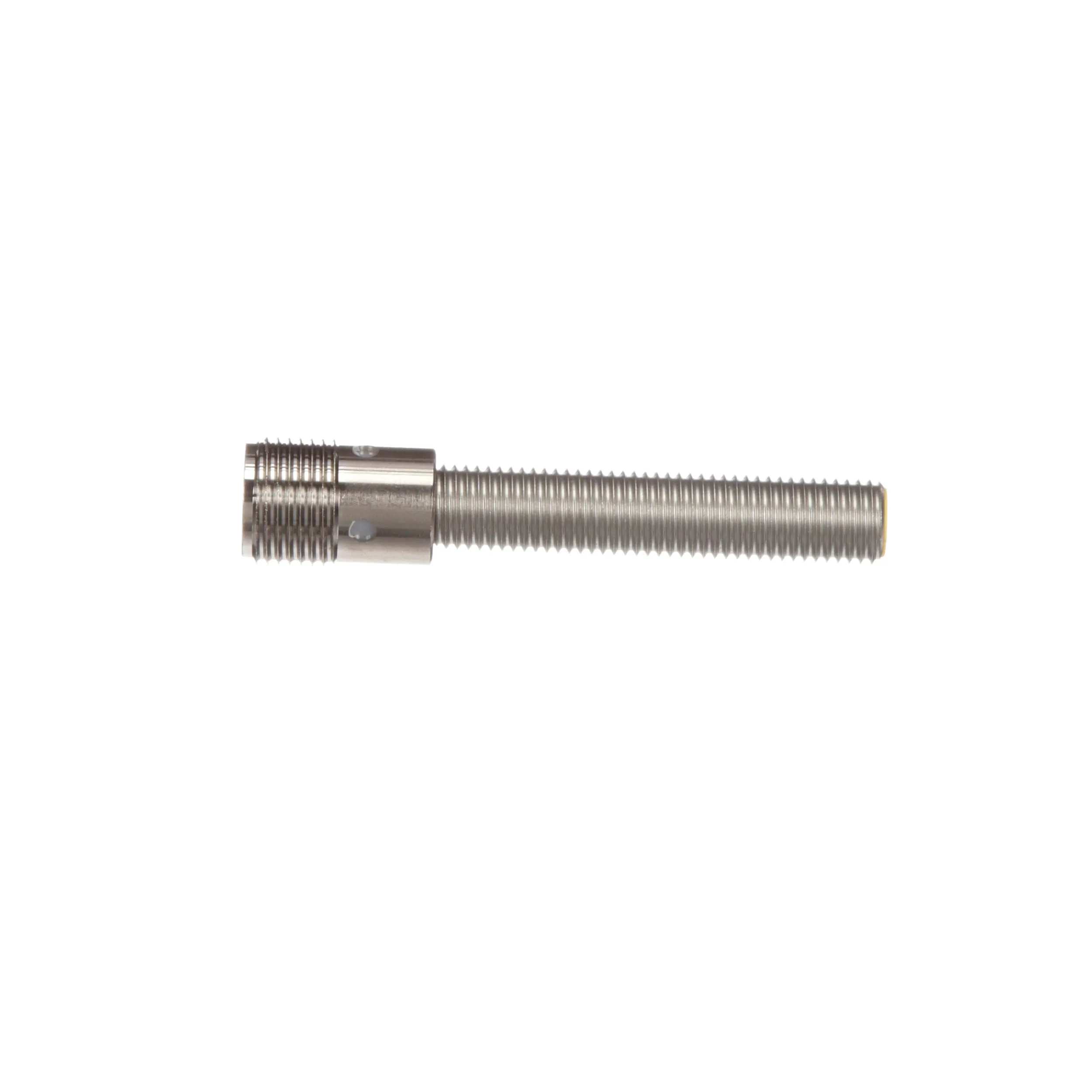

TURCK BI1.5U-EG08-AP6X-H1341
TURCK BI1.5U-EG08-AP6X-H1341
  • TURCK BI1.5U-EG08-AP6X-H1341
  • TURCK BI1.5U-EG08-AP6X-H1341
  • TURCK BI1.5U-EG08-AP6X-H1341
  • TURCK BI1.5U-EG08-AP6X-H1341
  • TURCK BI1.5U-EG08-AP6X-H1341
Product Details ＋
Product Attribute Attribute Value
Alternate Mfr Part Number S4600540
Body Style Cylindrical
Current Consumption 150 mA (Max.) (Operating)
Current, Switching 150 mA
Dimensions 2.244" L
Frequency, Switching 2 kHz
Housing Material Stainless Steel
IP Rating IP67
Maximum Operating Temperature 85 C
Measurement Range 1.5 mm
Minimum Operating Temperature -30 C
Mounting Type M12 Threaded
Operating Temperature, Maximum 85 C
Operating Temperature, Minimum -30 C
Output PNP-NO
Primary Type Inductive Proximity Sensors
Series
Standards IP 68 Protection
Supply Voltage 30 VDC
Termination Wired Connector

Overview

10 to 30 VDC Supply Voltage, 2000 Hz Switching Frequency, Inductive Sensors

  • -30 to 85°C operating temperature

    Features
  • Choice of Barrel with Potted-In Cable or M8 ( picofast®), M12 ( eurofast®) Quick-Disconnect
  • Short Circuit and Overload Protection Incorporated
  • Reverse Polarity and Wire Break Protection
  • LEDs Indicate: Output Energized and Short Circuit Warning
  • Normally Open Output
    Specifications
  • Environment Rating: NEMA 1, 3, 4, 4x, 6, 13; IP 67
  • Operating Temperature: -13°F to 158°F
  • Continuous Load Current: 200 mA Max.
  • Voltage Drop: 1.8 VDC at 200 mA
    • TURCK BI1.5U-EG08-AP6X-H1341
    • DefaultTitle

    $ 99.61
