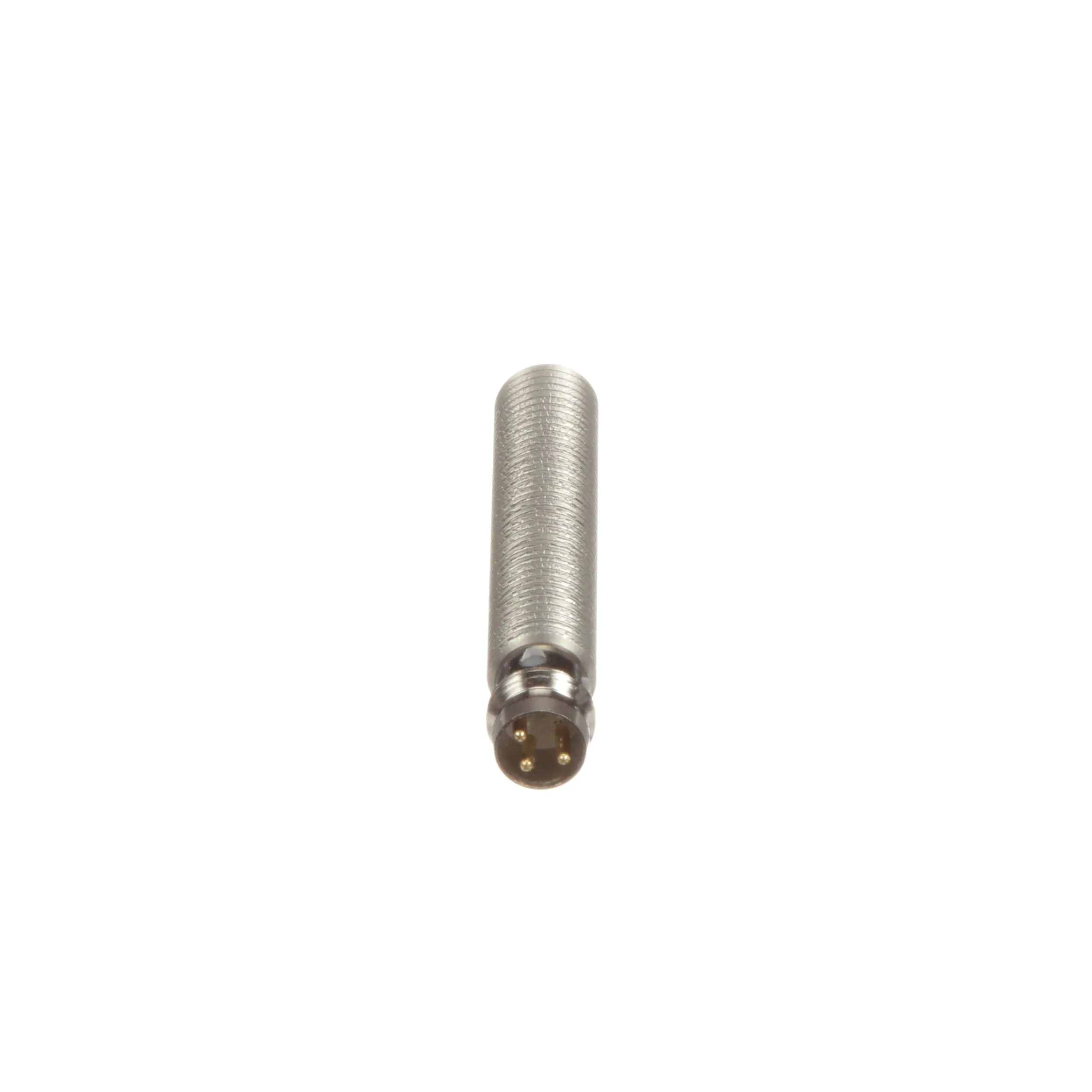

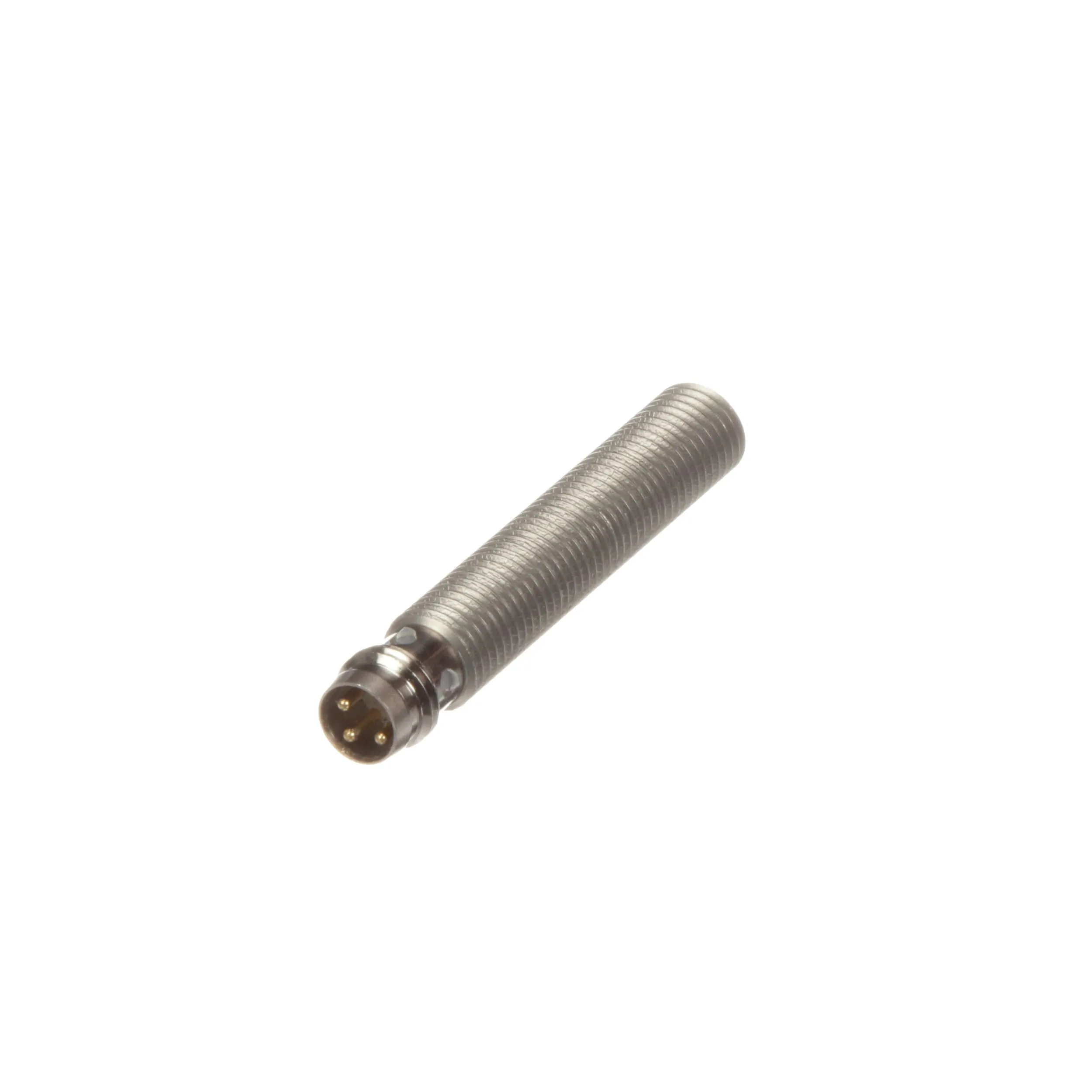

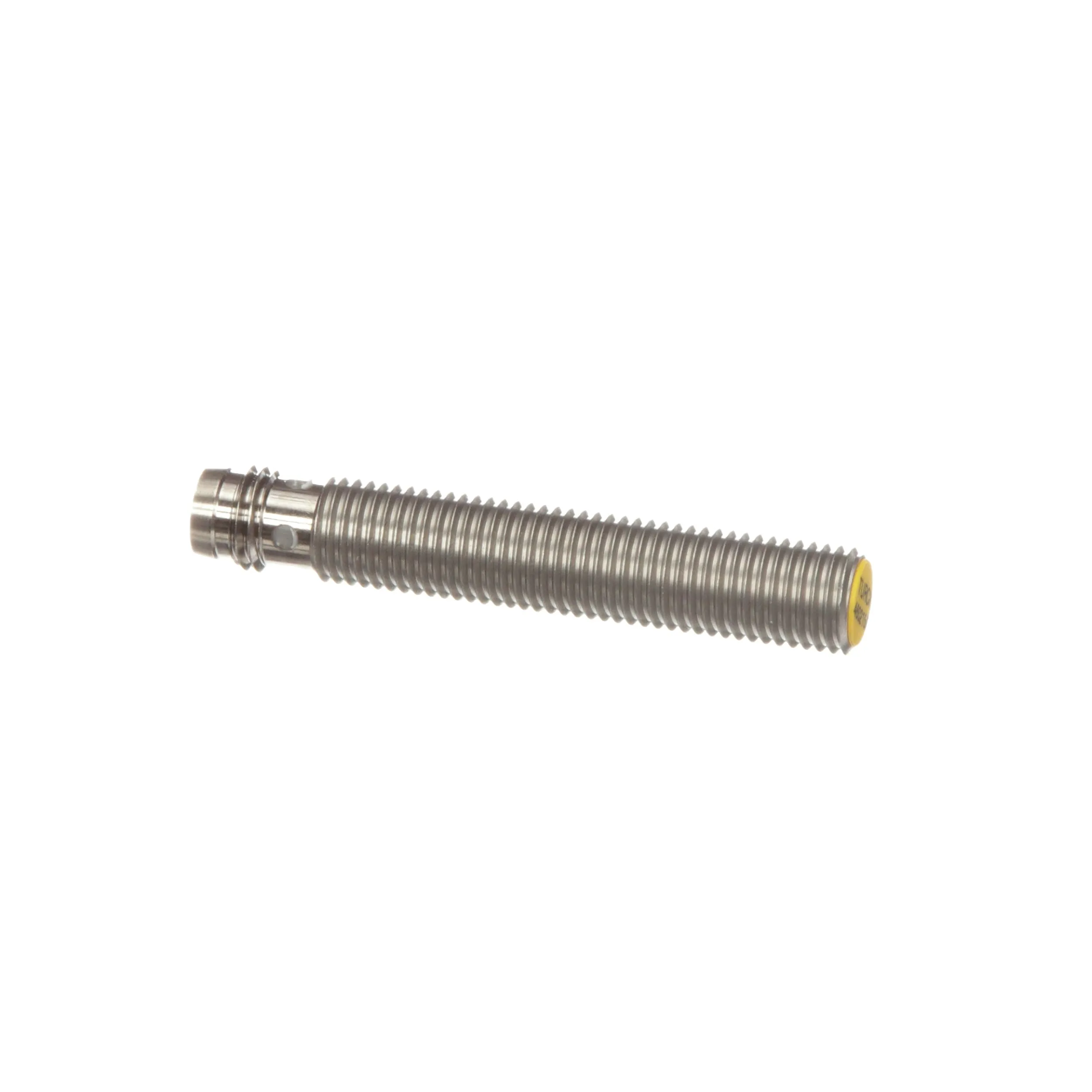

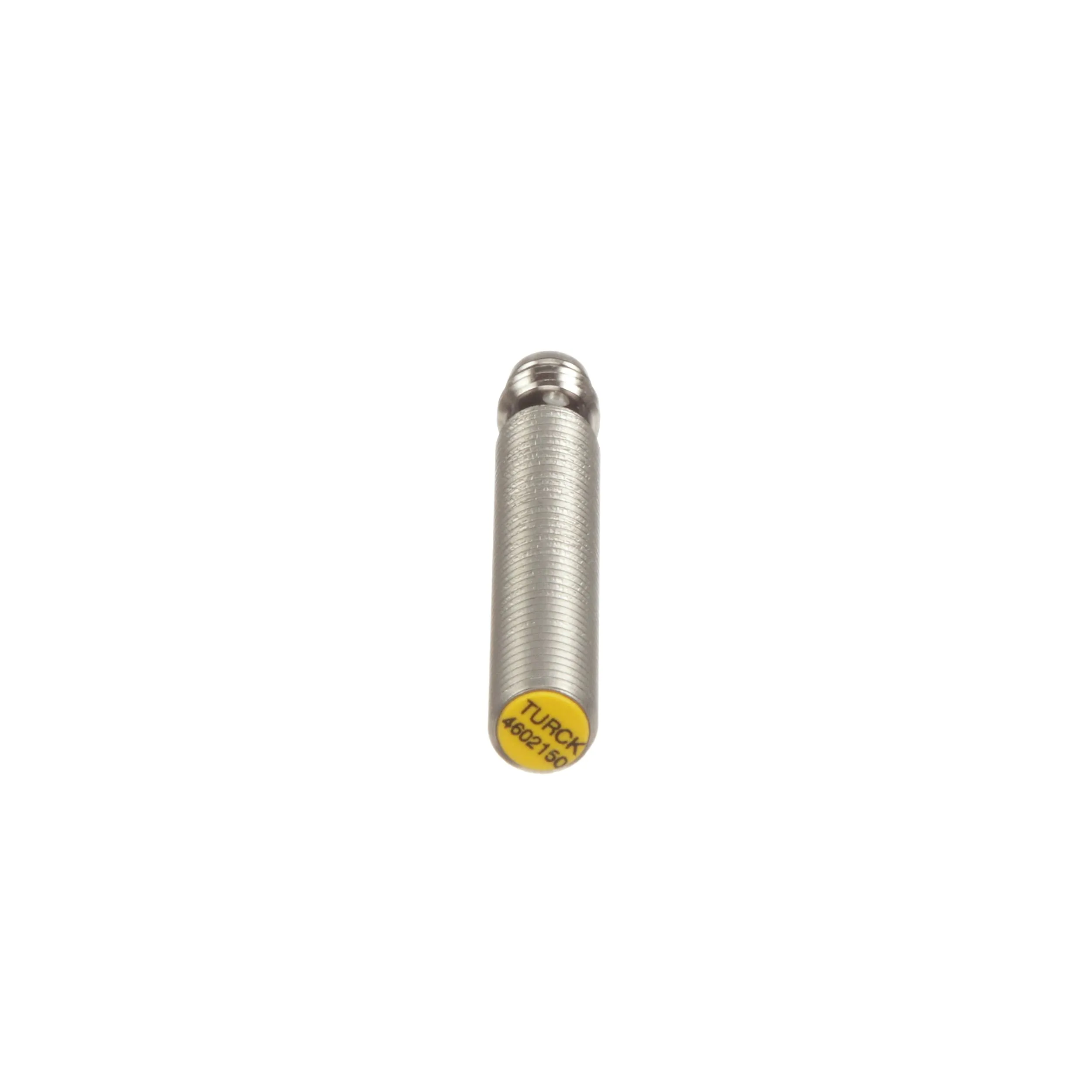

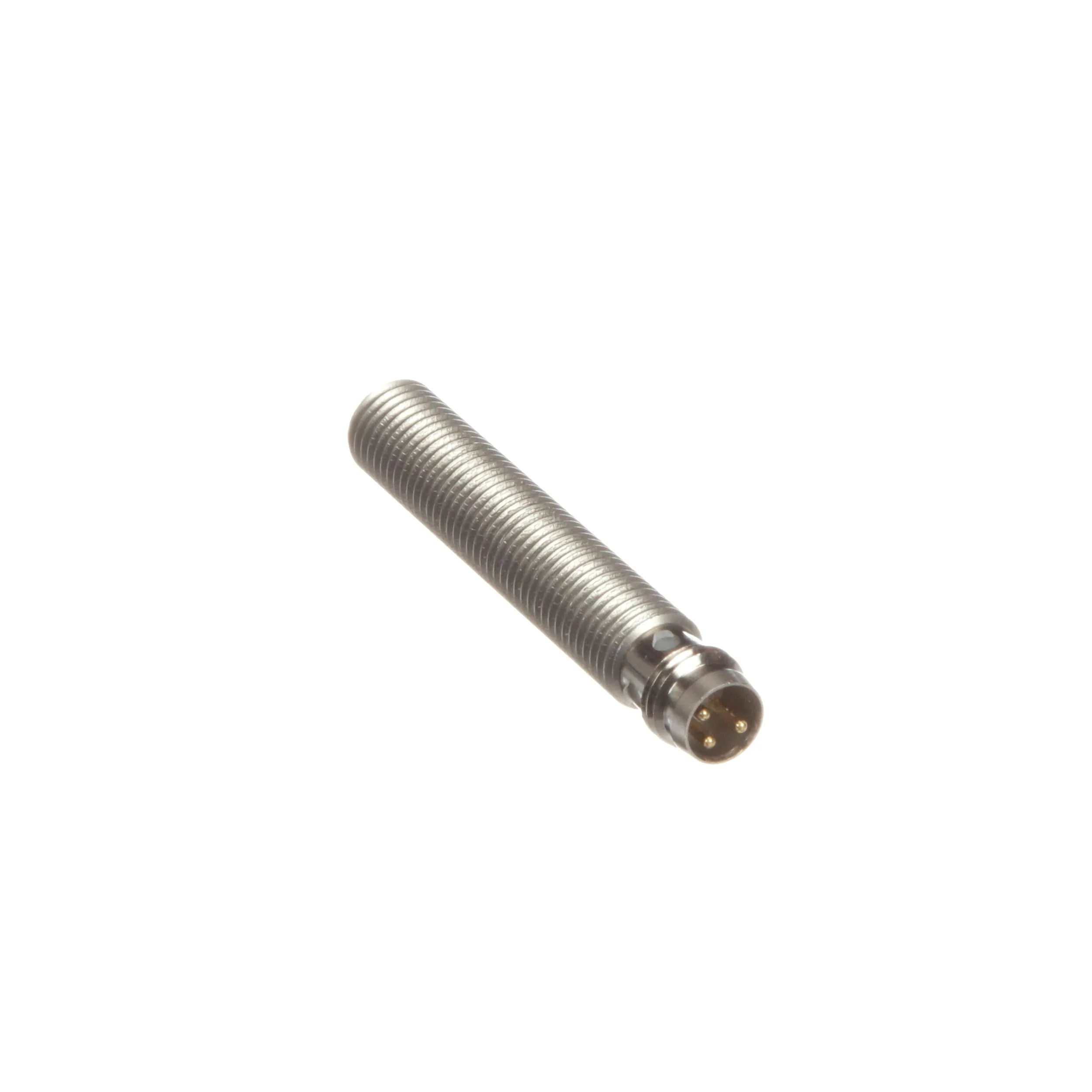

Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | S4602150 |
| Body Style | Cylindrical |
| Connection Type | M8 3-Pin |
| Current, Switching | 150 mA |
| Dimensions | 1.929" L x M8 x 1" Dia. |
| Frequency, Switching | 3 kHz |
| Housing Material | Stainless Steel |
| IP Rating | IP67 |
| Maximum Operating Temperature | 70 C |
| Measurement Range | 2 mm |
| Minimum Operating Temperature | -25 C |
| Mounting Type | M8 Threaded Flush |
| Operating Temperature, Maximum | 70 C |
| Operating Temperature, Minimum | -25 C |
| Output | NPN |
| Primary Type | Inductive Proximity Sensors |
| Series | |
| Shielding | Shielded |
| Supply Voltage | 30 VDC |
| Termination | Wired Connector |
Overview
Solve space problems with ® miniature inductive proximity sensors. Perfect for positioning control, small parts placement, robotic grippers, counting, inspecting and other applications where space is a problem. Self contained DC units switch 100 mA loads with tiny 4 mm, 5 mm, 6.5 mm and 8 mm diameter housings with built-in LEDs.
