Description

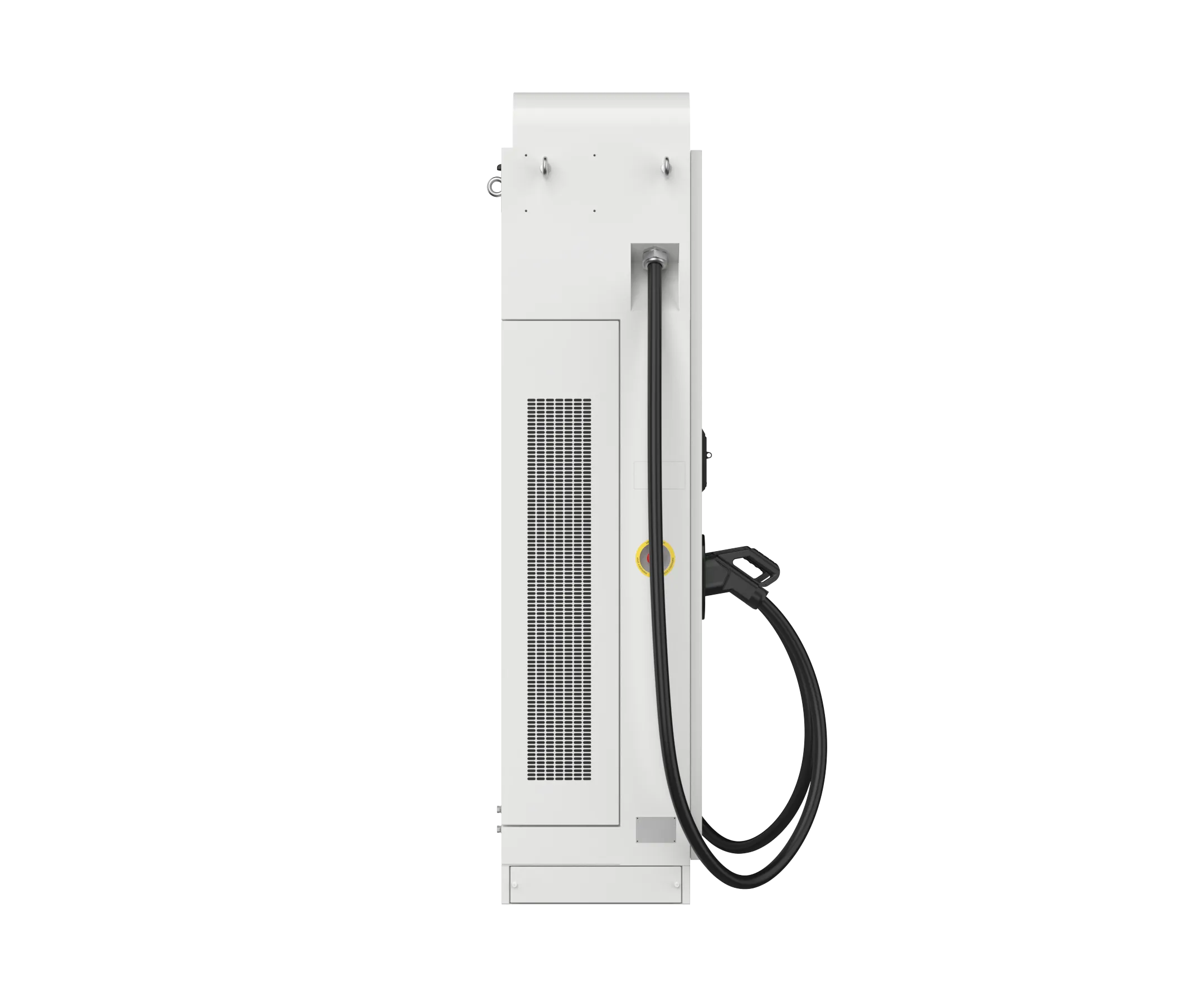

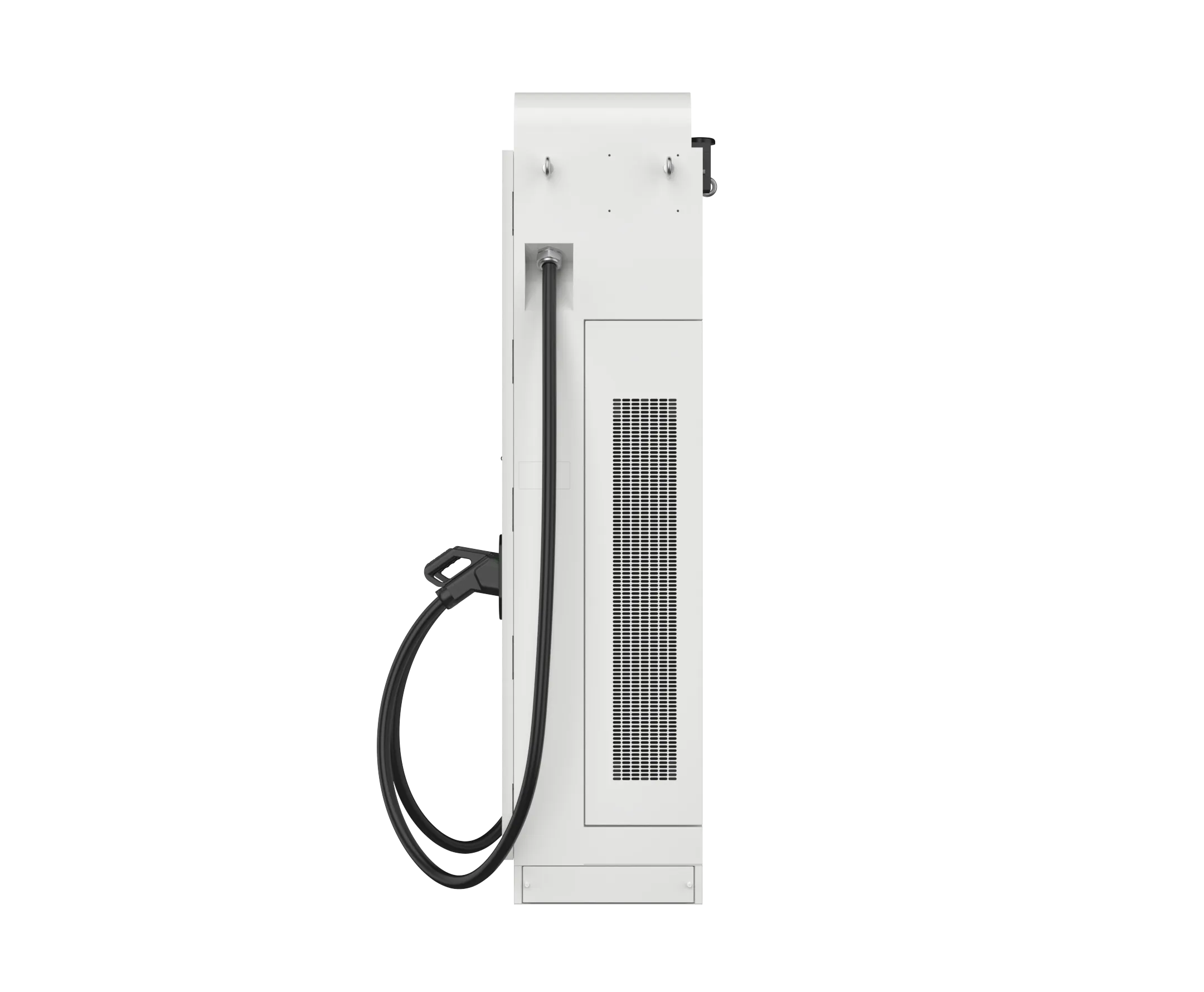

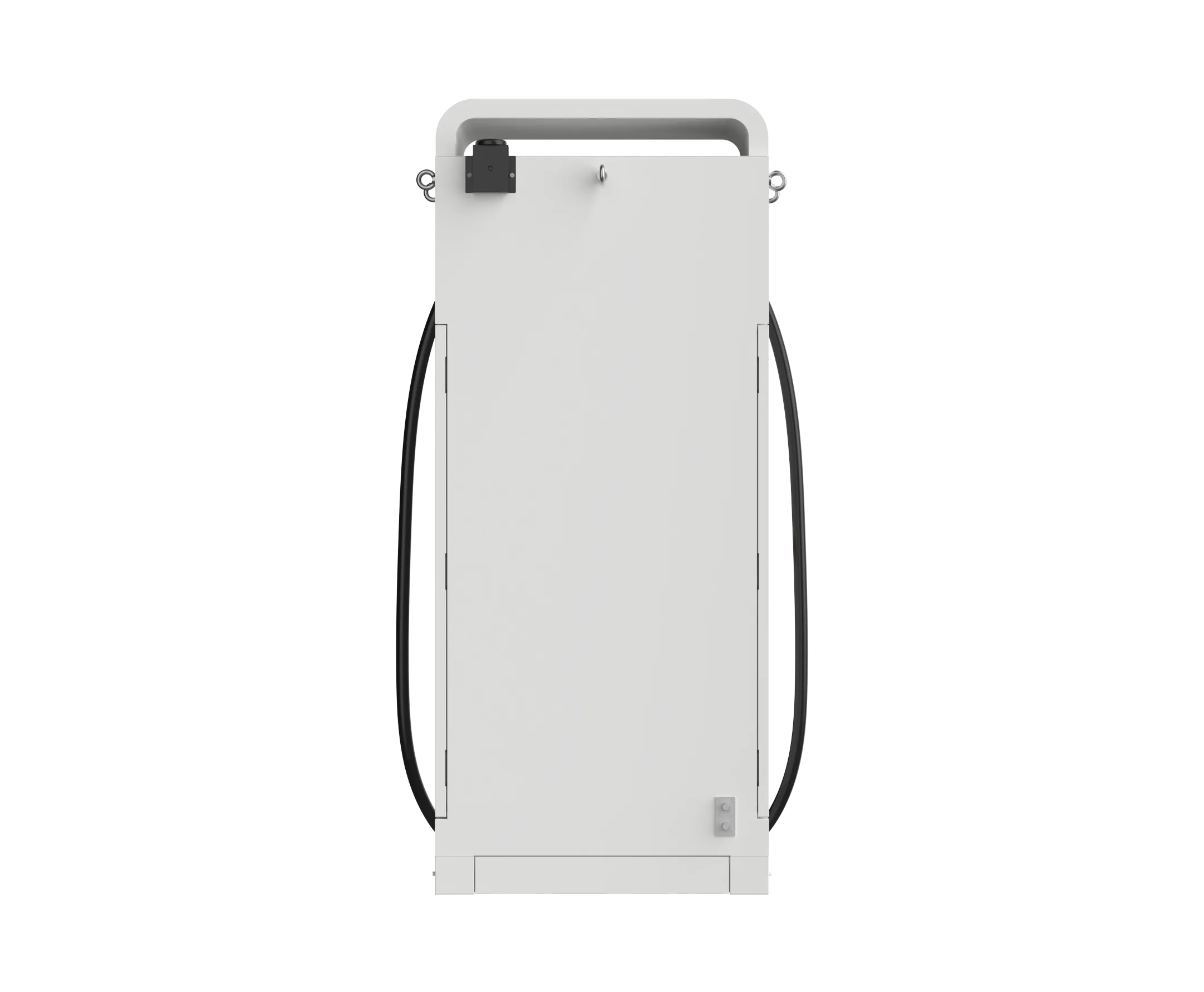

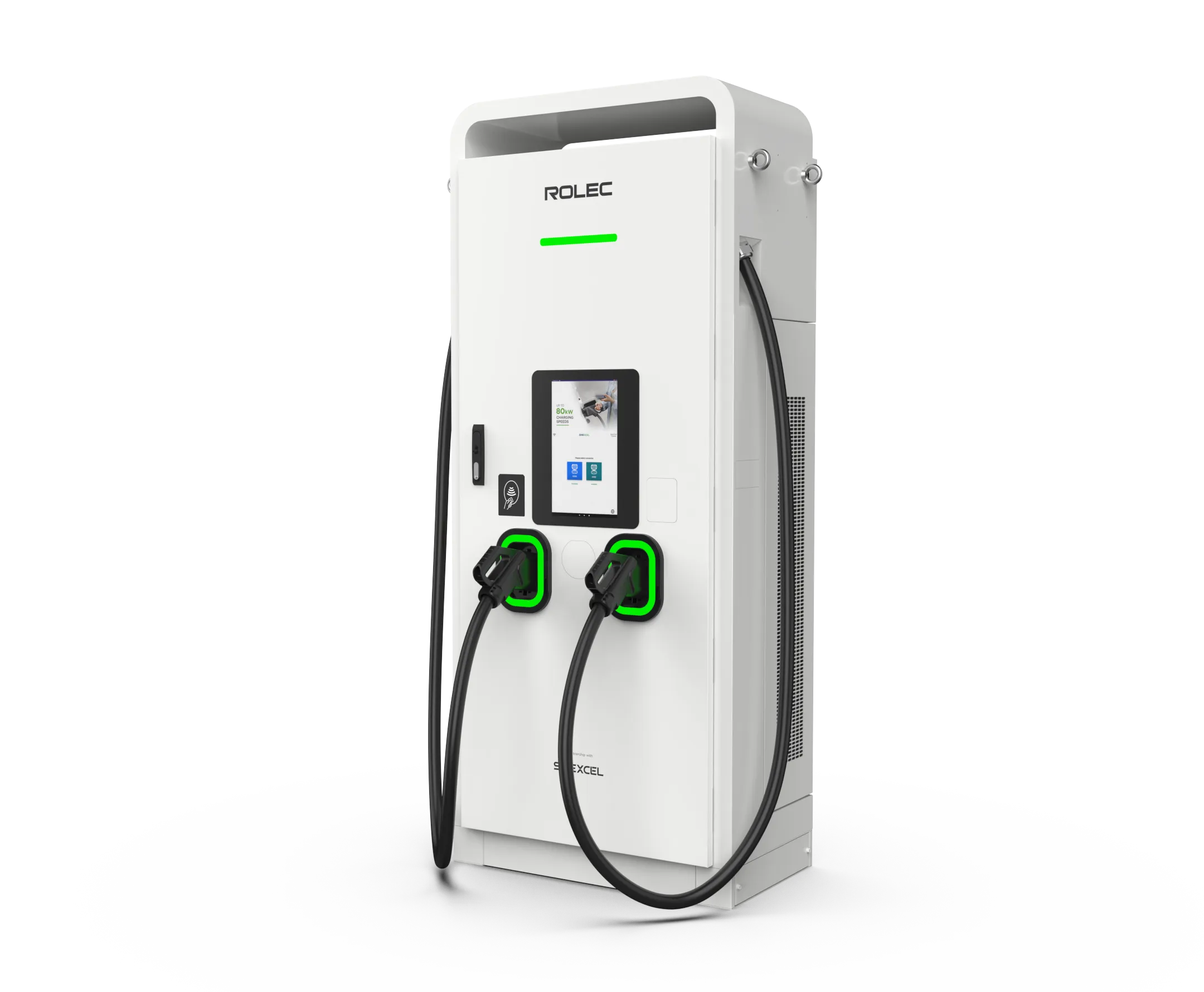

An intelligent modular and scalable DC ultra-rapid charging station, the ULTRACHARGE 160 is a futureproof and cost-effective solution for public, fleet and highway infrastructure deployment. This high powered, advanced and robust charger is available in two standard power configurations; 160kW or a 120kW version which can be upgraded in the future with the simple addition of extra 20kW power modules. Offering convenient charging times for every EV with the ability to charge two vehicles simultaneously. Charging can be activated via either mobile app, RFID, and supports plug & charge (ISO15118). A contactless payment terminal option is also available. Designed with installers and chargepoint owner / operators in mind, these chargers are easy to install, maintain and service.

Features

• Plug & charge, mobile app, or RFID controlled charging
• Offers 2x DC charging outputs
• Up to 160kW charging speeds
• Upgradeable power modules
• OCPP 1.6 compliant (OCPP 2.0.1 upgradable)
• Over-the-air firmware / software updates
• Intelligent dynamic power sharing
• Supports static and dynamic load management
• 15" HD user interface touch screen with advertising capability
• 4G / Ethernet connectivity • 96% Peak efficiency
• Ultrawide constant power output voltage range 300V – 1000V
• Under/overvoltage, DC overcurrent, over-temp & surge protection • 5m 300A rated charging cables (4.5m external) capable of delivering 120kW charge rate to a standard 400V vehicle
• Optional 7m cables also available (6.5m external)
• Optional cable management system
• Optional RFID / NFC / contactless card payment terminal
• Conforms with PAS 1899 accessible charging standard
• Strong and durable IP55 / IK10 rated
