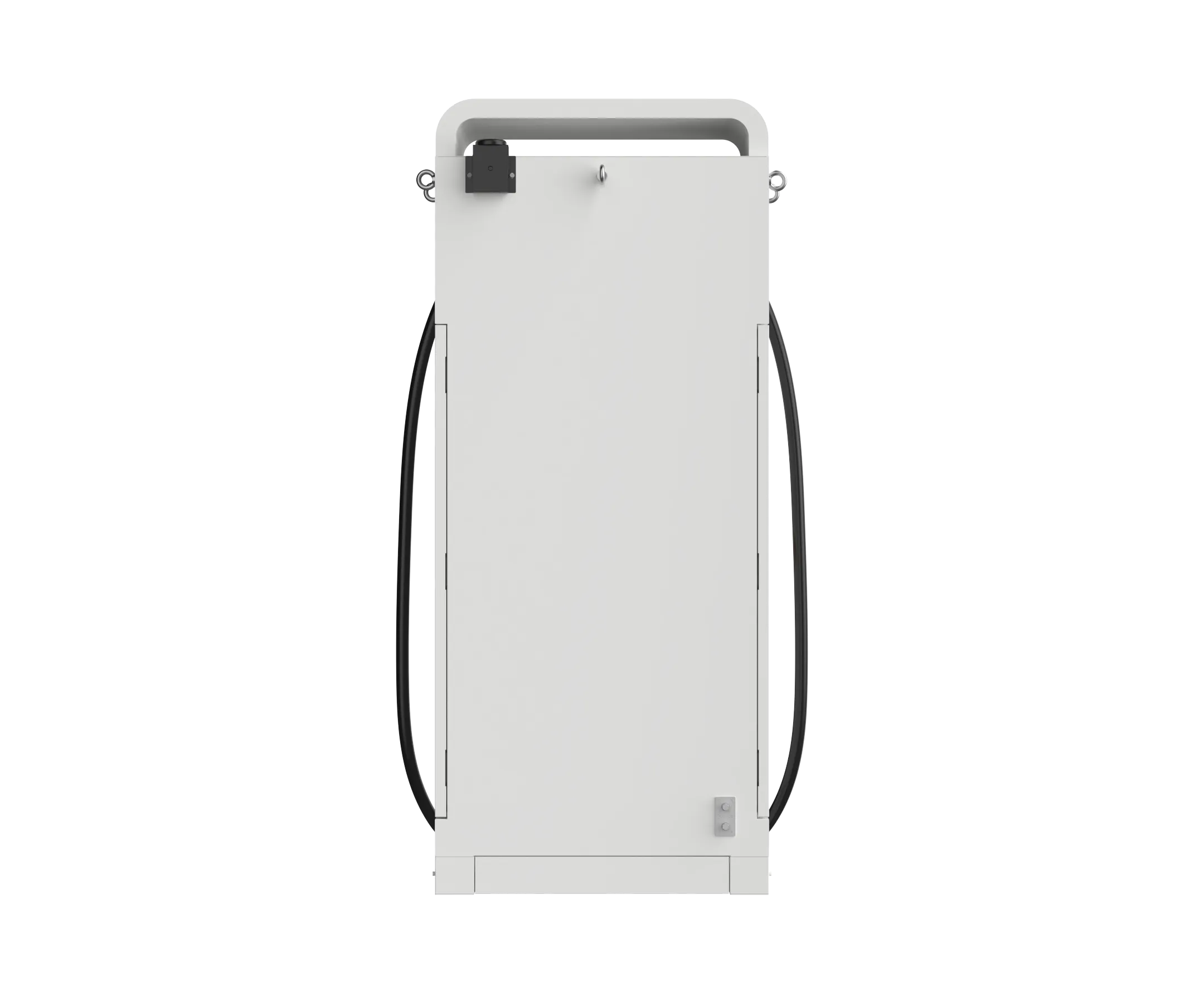

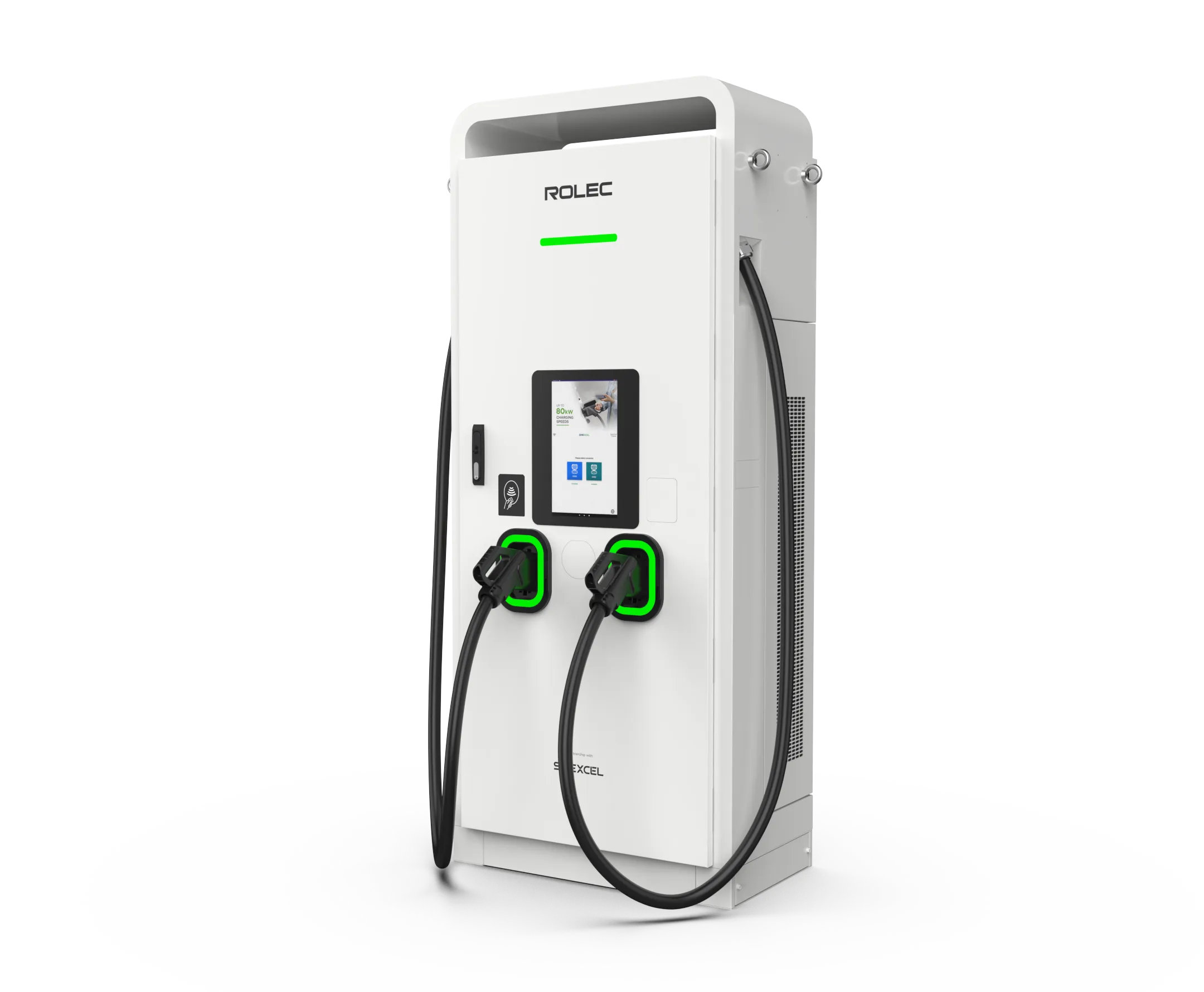

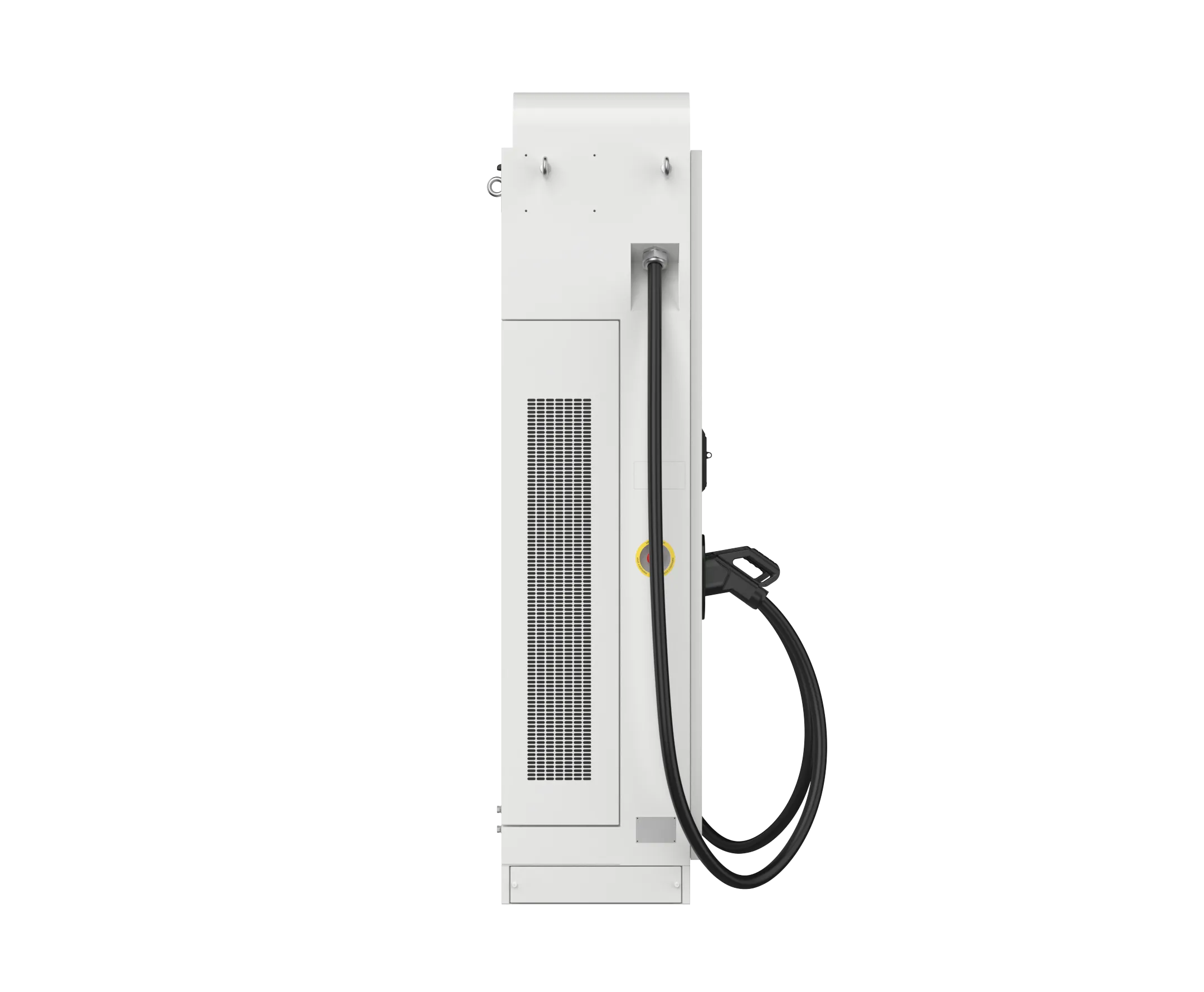

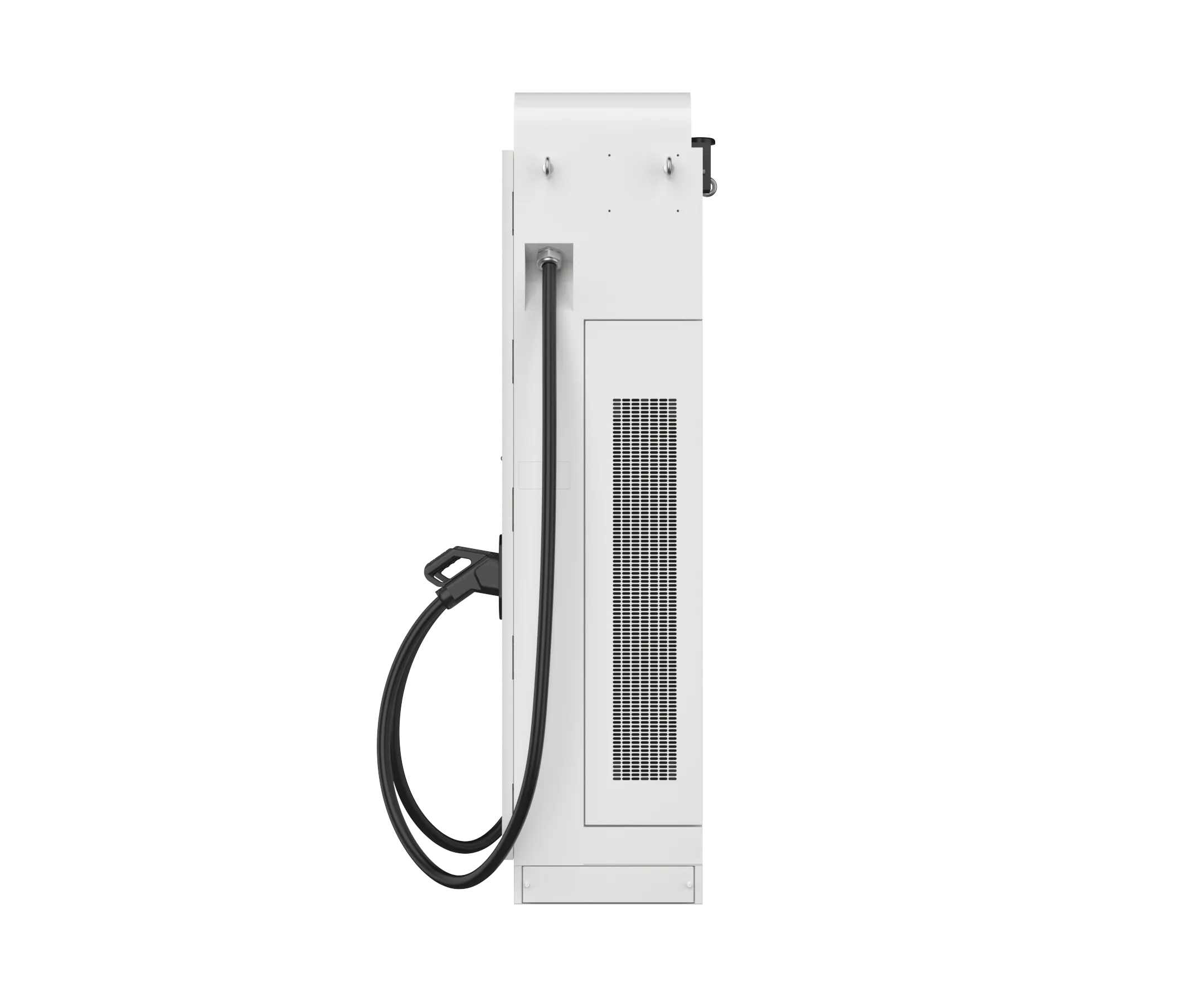

ULTRACHARGE 80
Intelligent rapid EV charging station
Description
The ULTRACHARGE 80 is an intelligent, modular, and scalable DC rapid charging station, providing a future-proof and cost-effective solution ideal for businesses, fleets, and public locations with limited space due to its small footprint. This advanced, high-powered charger is available in two standard configurations: 80kW or a 60kW version that can be upgraded with additional 20kW power modules. It offers convenient charging times for all EVs, with the capability to charge two vehicles simultaneously. Charging can be activated via mobile app, RFID, or plug & charge (ISO15118). An optional contactless payment terminal is also available. Designed for installers and chargepoint operators, these chargers are easy to install, maintain, and service.
Features
- Plug & charge, app, RFID controlled charging
- Offers 2x DC charging outputs
- Up to 80kW charging speeds
- Upgradeable power modules
- OCPP 1.6 compliant (OCPP 2.0.1 upgradable)
- Over-the-air firmware / software updates
- Intelligent dynamic power sharing
- Supports static and dynamic load management
- 15” HD user interface touch screen with advertising capability
- 4G / Ethernet connectivity
- 96% Peak efficiency
- Ultrawide constant power output voltage range 300V – 1000V
- Under/overvoltage, DC overcurrent, over-temp & surge protection
- 5m 200A rated charging cables (4.5m external) capable of delivering 80kW charge rate to a standard 400V vehicle
- Optional 7m cables also available (6.5m external)
- Optional cable management system
- Optional RFID / NFC / contactless card payment terminal
- Conforms with PAS 1899 accessible charging standard
- Strong and durable IP55 / IK10 rated
